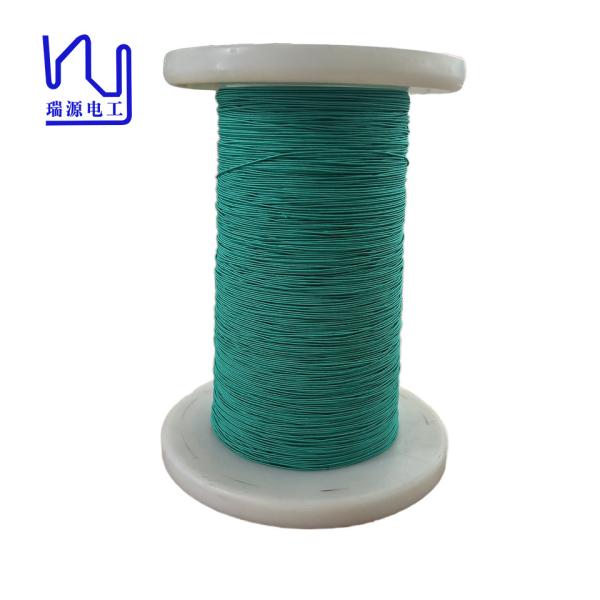

0.1mmx 80 Natural Silk Covered Litz Wire Green / Red Wire

Name: 01mmx 80 Natural Silk Covered Litz Wire Green Red Wire
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : USTCF litz wire

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : TT/Paypal

Supply Ability : 100kg/week

Delivery Time : 7 days

Packaging Details : Carton

Single Wire : 0.1mm

Number Of Strands : 80

Jacket : Natural silk

Other option of Jackets : Polyester, Nylon

Conductor Material : Copper

Key word : 0.1mmx 80 Natural Silk Covered Litz Wire Green/ Red Wire

Product name : 0.1mmx 80 Natural Silk Covered Litz Wire Green/ Red Wire

Contact Now

0.1mmx 80 Natural Silk Covered Litz Wire Green/ Red Wire
The inner core consists of 80 strands of 0.1mm enameled copper wire, designed to minimize signal loss and maximize fidelity. This unique combination of materials makes our Silk Covered Litz Wire an excellent choice for high-end audio applications.
Whether you design speakers, amplifiers, or other audio components, our silk-wrapped Litz wire can help you achieve the clarity and richness that discerning listeners crave.

Type Conductor diameter*Strand number			2USTC-F 0.10*80
Single wire(strand)	Conductor diameter(mm)		0.100±0.003
	overall diameter (mm)		0.107-0.125
	Thermal Class(℃)		155
Strands construction	Strands number		80
	Pitch(mm)		29±5
	bunching direction		S
Insulation layer	Material type		Natural silk
	Material specs(mm*mm or D)		300
	Times of Wrapping		1
	Overlap(%) or thickness(mm),mini		0.02
	Wrapping direction		S
Characteristics	Overall Diameter	Nominal (mm)	1.20
		Max(mm)	1.28
	Max pinholes Faults/6m		40
	Max resistance (Ω/Km at20℃)		29.76
	Breakdown voltage Mini (V)		1100
