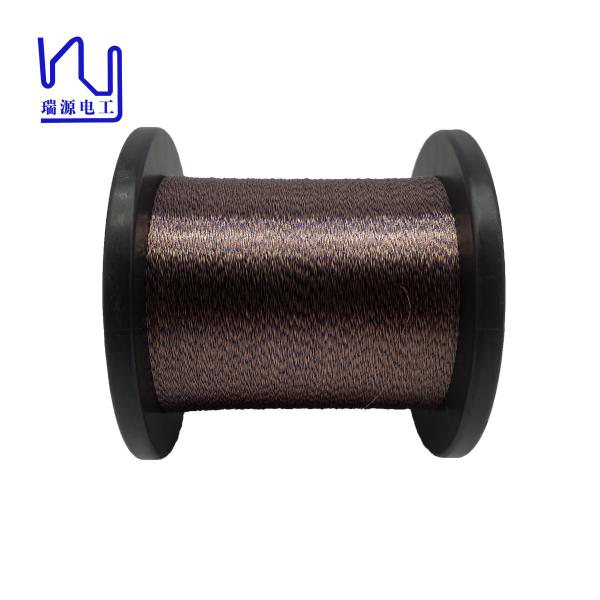

Uew H 0.125mm Enamel Coated Wire High Frequency Litz

Name: Uew H 0125mm Enamel Coated Wire High Frequency Litz
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : Copper litz wire

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : UEW H 0.125mm High-frequency Litz Wire

Diameter : 0.125mm

Conductor : Copper

Insulation : Enamel

Rated Temperature : 155

Key word : UEW H 0.125mm High-frequency Litz Wire

No. of strands : 2

Contact Now

UEW H 0.125mm High-frequency Litz Wire

Litz wire has a wide range of uses. It can be used as a cable conductor to transmit electrical energy or signals to ensure the normal operation of the circuit.

At the same time, Litz wire can also be used for internal connections of various electronic products to ensure the stability and efficiency of the circuit.

Description Conductor diameter*Strand number		1UEW 0.125*2(mm)	Test result(mm)
Single wire	Conductor diameter(mm)	0.125±0.003	0.125-0.127
	Outer conductor diameter(mm)	0.134-0.155	0.138-0.145
	Maximal overall diameter (mm)	0.35	0.30
Pitch(mm)		4±1	√
Max resistance (Ω/Km at20℃)		Max 0.7375	0.6947
Mini breakdown voltage (V )		1300	2000
Name		UEW H 0.125mm High-frequency Litz Wire
Key word		UEW H 0.125mm High-frequency Litz Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Uew H 0.125mm Enamel Coated Wire High Frequency Litz
