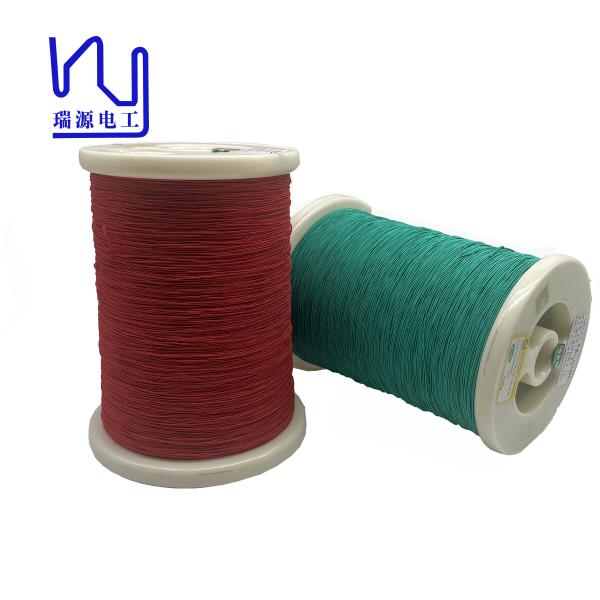

Red / Green Color Custom USTC Wire 0.1mm X 50 Copper Conductor Natural Silk Served

Name: Red Green Color Custom USTC Wire 01mm X 50 Copper Conductor Natural Silk Served
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.1mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 100kg/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Red / Green Color Custom USTC Wire 0.1mm X 50 Copper Conductor Natural Silk Served

Insulation : Polyurethane

Size : 0.1mm

Quantity : 10kg/roll

Key word : Red / Green Color Custom USTC Wire 0.1mm X 50 Copper Conductor Natural Silk Served

NO. of strands : 50

Cover : Natural silk

Contact Now

Red / Green Color Custom USTC Wire 0.1mm X 50 Copper Conductor Natural Silk Served

We understand the importance of precision and quality in electrical components, which is why we take great care when producing litz wire to the highest standards.

Our commitment to customization means we can tailor the wire to your exact specifications, ensuring it is seamlessly integrated into your specific application. Whether you require specific specifications, lengths or configurations, we have the expertise and capabilities to provide a custom solution that meets your unique requirements.

Item	Unit	Technical requests	Reality Value
Conductor Diameter	mm	0.1±0.003	0.098	0.100
Single wire diameter	mm	0.107-0.125	0.110	0.114
O.D.	mm	Max. 1.20	0.88	0.88
Resistance (20℃)	Ω/m	Max.0.04762	0.04448	0.04464
Breakdown Voltage	V	Min.1100	1400	2200
Pitch	mm	10±2	√	√
No. of strands		50	√	√
Pinhole	faults/6m	Max. 35	6	8
Key word	Red / Green Color Custom USTC Wire 0.1mm X 50 Copper Conductor Natural Silk Served
