AWG 20 - 56 Enamelled Copper Winding Wire 0.012 - 0.8mm Ultra Fine Copper Magnet Wire

Name: AWG 20 56 Enamelled Copper Winding Wire 0012 08mm Ultra Fine Copper Magnet Wire
Brand: Rvyuan
Price: 1 USD

AWG 20 - 56 Enamelled Copper Winding Wire 0.012 - 0.8mm Ultra Fine Copper Magnet Wire Manufactures

Brand Name : Rvyuan

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

Price : Negotiation

Payment Terms : Negotiation, T/T, L/C

MOQ : Different types with differet MOQ

Packaging Details : Spool with carton

Delivery Time : 2-15 workding days

Supply Ability : Satisfy your demand

Model Number : AWG 20 - 56

Thermal Rating : 155/180

COLOR : Red/green/blue/glod

Size Range : 0.012-0.8mm

Insulation : UEW/2UEW/3UEW

Contact Now

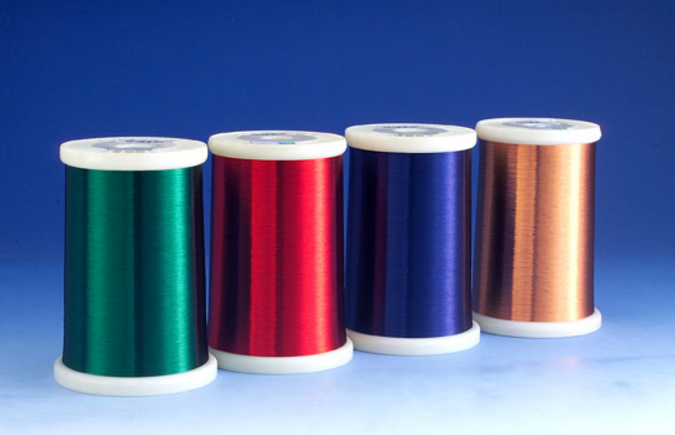

AWG 20 - 56 ENAMELED COPPER WINDING WIRE 0.012-0.8MM ULTRA FINE COPPER MAGNET WIRE

Super Enamelled Copper Wires are the widely used current carrying insulated conductors in the construction of electrical equipments. Insulation is a material which does not allow the electricity to pass through itself. Our Enamelled Copper Wires is known for their high performance, life and reliability of the article for which it is used

FEATURES

Insulation: sold ER able polyurethane with polyamide overcoat
NEMA description: mw-80-c
Build: single min-nom
Temperature Rating:180℃

APPLICATION

Automotive sensors and coils as relais and ignition coils.
Generators, dry-type or oil-immersed.
Anti-explosion motor, air-conditioner compressor, washing machines.

AWG 20 - 56 Enamelled Copper Winding Wire 0.012 - 0.8mm Ultra Fine Copper Magnet Wire

SPECIFICATION

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50.000	----	5.00	10.00	142.64	157.65
0.013	----	0.015	0.017	70.000	----	5.00	10.00	118.41	133.98
0.014	----	0.016	0.018	70.000	----	5.00	10.00	102.64	120.45
0.015	----	0.017	0.020	80.000	----	5.00	10.00	89.83	104.41
0.016	----	0.018	0.021	90.000	----	5.00	8.00	74.67	97.56
0.017	----	0.019	0.022	90.000	----	5.00	8.00	66.60	85.75
0.018	----	0.020	0.023	100.000	----	5.00	8.00	59.77	75.95
0.019	----	0.021	0.024	100.000	----	5.00	8.00	53.95	67.75
0.020	0.001	0.022	0.024	100.000	----	8.00	8.00	51.83	60.81
0.050	±0.002	0.007	0.062	400.000	1200.00	12.00	5.00	7981.00	9528.00
0.055	±0.002	0.007	0.068	400.000	1200.00	12.00	5.00	6642.00	7815.00
0.060	±0.002	0.007	0.073	500.000	1200.00	14.00	5.00	5614.00	6526.00
0.065	±0.002	0.007	0.078	500.000	1200.00	14.00	5.00	4807.00	5531.00
0.070	±0.002	0.007	0.083	500.000	1200.00	15.00	5.00	4163.00	4747.00
0.075	±0.002	0.007	0.088	550.000	1200.00	15.00	5.00	3640.00	4119.00
0.080	±0.002	0.008	0.094	550.000	1200.00	16.00	5.00	3209.00	3608.00
0.085	±0.002	0.008	0.099	550.000	1200.00	16.00	5.00	2851.00	3187.00
0.090	±0.002	0.010	0.106	650.000	1200.00	16.00	5.00	2550.00	2835.00
0.095	±0.002	0.010	0.111	650.000	1200.00	17.00	5.00	2294.00	2538.00
0.100	±0.002	0.011	0.118	650.000	1200.00	17.00	5.00	2074.00	2286.00
0.110	±0.002	0.011	0.129	----	1300.00	17.00	5.00	1720.00	1882.00
0.120	±0.002	0.011	0.139	----	1500.00	17.00	5.00	1450.00	1577.00
0.130	±0.002	0.011	0.149	----	1500.00	18.00	5.00	1239.00	1340.00
0.140	±0.002	0.011	0.159	----	1600.00	19.00	5.00	1070.00	1153.00
0.150	±0.002	0.011	0.169	----	1700.00	20.00	5.00	934.10	1002.00
0.160	±0.002	0.012	0.180	----	1700.00	21.00	5.00	822.30	879.40
0.170	±0.003	0.013	0.192	----	2000.00	22.00	5.00	721.10	787.10
0.180	±0.003	0.014	0.204	----	2000.00	22.00	5.00	644.40	700.70
0.190	±0.003	0.014	0.214	----	2000.00	23.00	5.00	579.40	627.80
0.200	±0.003	0.014	0.224	----	2000.00	23.00	5.00	523.70	565.70
0.210	±0.003	0.014	0.234	----	2000.00	23.00	5.00	475.70	512.30
0.220	±0.003	0.014	0.245	----	2200.00	23.00	5.00	434.00	466.20
0.230	±0.003	0.016	0.257	----	2200.00	24.00	5.00	397.50	426.00
0.240	±0.003	0.016	0.267	----	2200.00	24.00	5.00	365.50	390.80
0.250	±0.003	0.016	0.277	----	2300.00	24.00	5.00	337.10	359.80
0.260	±0.004	0.018	0.287	----	2300.00	25.00	5.00	309.60	335.00
0.270	±0.004	0.018	0.297	----	2300.00	25.00	5.00	287.40	310.30
0.280	±0.004	0.022	0.313	----	2300.00	25.00	5.00	267.60	288.20
0.290	±0.004	0.022	0.323	----	2500.00	25.00	5.00	249.70	268.40
0.300	±0.004	0.022	0.334	----	2500.00	25.00	5.00	233.50	250.60
0.310	±0.004	0.022	0.344	----	2500.00	25.00	5.00	218.90	234.40
0.315	±0.004	0.022	0.349	----	2500.00	25.00	5.00	212.10	227.00
0.320	±0.004	0.023	0.355	----	2700.00	25.00	5.00	205.60	219.80
0.330	±0.004	0.023	0.365	----	2700.00	25.00	5.00	193.50	206.60
0.350	±0.004	0.023	0.385	----	2700.00	26.00	5.00	172.20	183.40
0.355	±0.004	0.023	0.390	----	2700.00	26.00	5.00	167.40	178.20
0.370	±0.004	0.024	0.406	----	2900.00	26.00	5.00	154.30	163.90
0.380	±0.004	0.024	0.416	----	2900.00	26.00	5.00	146.40	155.30
0.400	±0.004	0.025	0.437	----	2900.00	27.00	5.00	132.20	140.00
0.410	±0.004	0.025	0.447	----	2900.00	27.00	5.00	125.90	133.20
0.440	±0.004	0.025	0.477	----	2900.00	27.00	5.00	109.50	115.50
0.450	±0.004	0.025	0.487	----	2900.00	27.00	5.00	104.70	110.40
0.470	±0.004	0.026	0.508	----	3100.00	27.00	5.00	96.05	101.10
0.500	±0.004	0.026	0.539	----	3100.00	27.00	5.00	84.96	89.23
0.550	±0.004	0.027	0.590	----	3300.00	28.00	5.00	70.31	73.64
0.600	±0.005	0.027	0.640	----	3500.00	28.00	5.00	58.96	62.01
0.650	±0.005	0.027	0.690	----	3500.00	28.00	5.00	50.30	52.77
0.700	±0.005	0.029	0.742	----	3500.00	28.00	5.00	43.42	45.45
0.750	±0.005	0.030	0.794	----	3800.00	28.00	5.00	37.86	39.55
0.800	±0.005	0.032	0.846	----	3800.00	28.00	5.00	33.30	34.73
