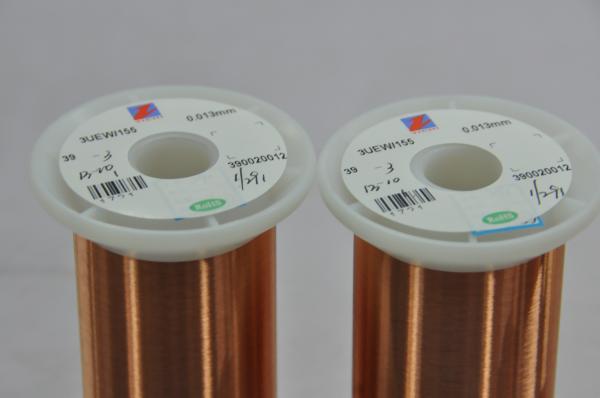

Durable Enameled Copper Winding Wire Speaker Coil Wire Excellent Chemical Performance

Brand Name : Ruiyuan

Model Number : UEW

Certification : ISO9001/ISO14001 /UL/SGS

Place of Origin : China

MOQ : 2kgs

Price : Negotiation

Payment Terms : L/C, T/T

Delivery Time : 7-15 work days

Packaging Details : Carton

Type : Insulated

Conductor Material : Copper

Insulation Material : Enameled

Conductor Type : Solid

Standard : IEC/JIS/NEMA

Insulation : Polyurethane

Solderability : Yes

Conductor : Copper

Contact Now

UEW 130 / 155 / 180 ENAMELED COPPER WINDING WIRE SELF BONDING WIRE FOR SPEAKER COIL WIRE

Magnet wire has excellent mechanical, electrical and chemical performance, especially in high current output, heat resistance and corrosion resisitance. It is mainly used in high-voltage transformers, electric machines, generator, etc. A special type of enamelled wire is self bonding or adelaide enameleld wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.

FEATURES

1. Temperature Rate: 155/180/220℃

2. Twotypes of self-bonding materials and can be processed with either alcohol,heat or electric methods. The alcohol must be removed from the coil to ensure the long term insulation degradatoin does not occur. The wire has unifor lubrication and good winding property

3. We also provider solderable wires to save process time for customers

4. Size range:0.015-0.6mm

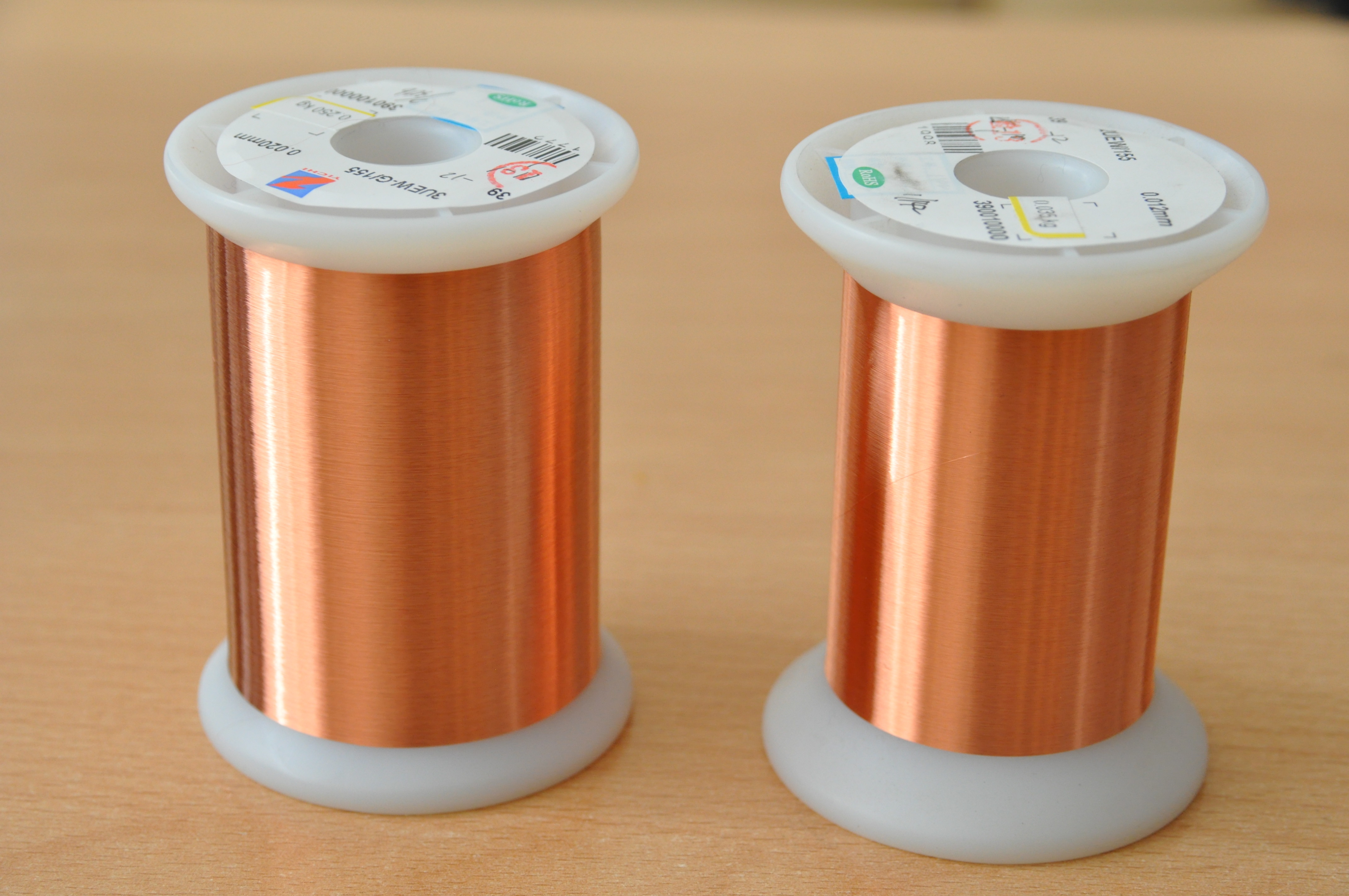

Durable Enameled Copper Winding Wire Speaker Coil Wire Excellent Chemical Performance

Nominal Diameter mm
Tolerance
Min. Increase of Diameter
Max. Overall Diameter
Breakdown Voltage
Elongation
Pin Hole
Electrical Resistance
mm
≥ V
≥%
≤Default/5m
Ω/km (20℃)
Mandrel Method
Twisted Method
Min.
Max.
0.012
----
0.013
0.015
50.000
----
5.00
10.00
142.64
157.65
0.013
----
0.015
0.017
70.000
----
5.00
10.00
118.41
133.98
0.014
----
0.016
0.018
70.000
----
5.00
10.00
102.64
120.45
0.015
----
0.017
0.020
80.000
----
5.00
10.00
89.83
104.41
0.016
----
0.018
0.021
90.000
----
5.00
8.00
74.67
97.56
0.017
----
0.019
0.022
90.000
----
5.00
8.00
66.60
85.75
0.018
----
0.020
0.023
100.000
----
5.00
8.00
59.77
75.95
0.019
----
0.021
0.024
100.000
----
5.00
8.00
53.95
67.75
0.020
0.001
0.022
0.024
100.000
----
8.00
8.00
51.83
60.81
0.050
±0.002
0.007
0.062
400.000
1200.00
12.00
5.00
7981.00
9528.00
0.055
±0.002
0.007
0.068
400.000
1200.00
12.00
5.00
6642.00
7815.00
0.060
±0.002
0.007
0.073
500.000
1200.00
14.00
5.00
5614.00
6526.00
0.085
±0.002
0.008
0.099
550.000
1200.00
16.00
5.00
2851.00
3187.00
0.090
±0.002
0.010
0.106
650.000
1200.00
16.00
5.00
2550.00
2835.00
0.095
±0.002
0.010
0.111
650.000
1200.00
17.00
5.00
2294.00
2538.00
0.100
±0.002
0.011
0.118
650.000
1200.00
17.00
5.00
2074.00
2286.00
0.110
±0.002
0.011
0.129
----
1300.00
17.00
5.00
1720.00
1882.00
0.120
±0.002
0.011
0.139
----
1500.00
17.00
5.00
1450.00
1577.00
0.130
±0.002
0.011
0.149
----
1500.00
18.00
5.00
1239.00
1340.00
0.140
±0.002
0.011
0.159
----
1600.00
19.00
5.00
1070.00
1153.00
0.150
±0.002
0.011
0.169
----
1700.00
20.00
5.00
934.10
1002.00
0.160
±0.002
0.012
0.180
----
1700.00
21.00
5.00
822.30
879.40
0.170
±0.003
0.013
0.192
----
2000.00
22.00
5.00
721.10
787.10
0.180
±0.003
0.014
0.204
----
2000.00
22.00
5.00
644.40
700.70
0.190
±0.003
0.014
0.214
----
2000.00
23.00
5.00
579.40
627.80
0.200
±0.003
0.014
0.224
----
2000.00
23.00
5.00
523.70
565.70
0.210
±0.003
0.014
0.234
----
2000.00
23.00
5.00
475.70
512.30
0.220
±0.003
0.014
0.245
----
2200.00
23.00
5.00
434.00
466.20
0.230
±0.003
0.016
0.257
----
2200.00
24.00
5.00
397.50
426.00
0.240
±0.003
0.016
0.267
----
2200.00
24.00
5.00
365.50
390.80
0.250
±0.003
0.016
0.277
----
2300.00
24.00
5.00
337.10
359.80
0.260
±0.004
0.018
0.287
----
2300.00
25.00
5.00
309.60
335.00
0.270
±0.004
0.018
0.297
----
2300.00
25.00
5.00
287.40
310.30
0.280
±0.004
0.022
0.313
----
2300.00
25.00
5.00
267.60
288.20
0.290
±0.004
0.022
0.323
----
2500.00
25.00
5.00
249.70
268.40
0.300
±0.004
0.022
0.334
----
2500.00
25.00
5.00
233.50
250.60
0.310
±0.004
0.022
0.344
----
2500.00
25.00
5.00
218.90
234.40
0.315
±0.004
0.022
0.349
----
2500.00
25.00
5.00
212.10
227.00
0.320
±0.004
0.023
0.355
----
2700.00
25.00
5.00
205.60
219.80
0.330
±0.004
0.023
0.365
----
2700.00
25.00
5.00
193.50
206.60
0.350
±0.004
0.023
0.385
----
2700.00
26.00
5.00
172.20
183.40
0.355
±0.004
0.023
0.390
----
2700.00
26.00
5.00
167.40
178.20
0.370
±0.004
0.024
0.406
----
2900.00
26.00
5.00
154.30
163.90
0.380
±0.004
0.024
0.416
----
2900.00
26.00
5.00
146.40
155.30
