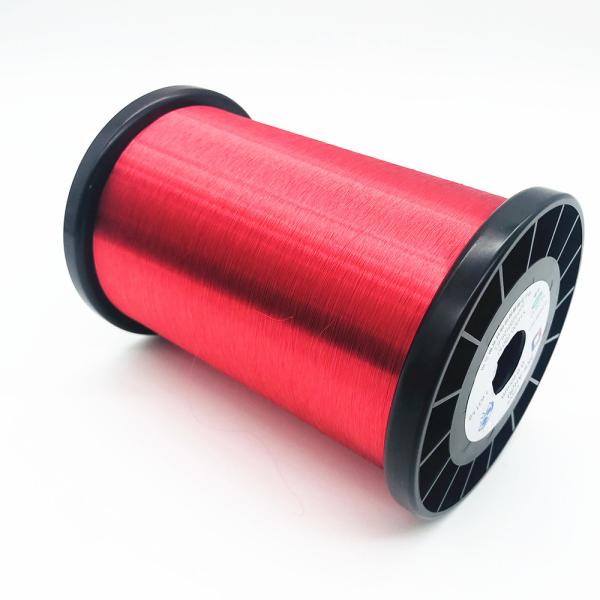

Alcohol Self Adhesive Winding 0.04 Mm Wire For Voice Coils

Name: Alcohol Self Adhesive Winding 004 Mm Wire For Voice Coils
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : UEW

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : 0.04mm alcohol self adhesive winding wire for bonding wire for voice coils

Diameter : 0.04mm

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Polyurethane

Rated Temperature : 155/180

Key word : 0.04mm alcohol self adhesive winding wire for bonding wire for voice coils

Contact Now

0.04mm alcohol self adhesive winding wire for bonding wire for voice coils

The application of self-adhesive enameled wire also brings significant social and economic benefits, which can simplify the coil forming process, improve work efficiency, save energy, and improve environmental pollution, which is beneficial to industrial production.

Name	0.04mm alcohol self adhesive winding wire for bonding wire for voice coils
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Key word	0.04mm alcohol self adhesive winding wire for bonding wire for voice coils

Characteristics	Technical requests		Test Results
			Sample 1	Sample 2
Surface	Good		OK	OK
Bare Wire Diameter	0.040±	0.001	0.040	0.040
		0.001
Insulation Film Thickness	Min. 0.002 mm		0.003	0.003
Bonding Film Thickness	Min. 0.002mm		0.003	0.003
Overall Diameter	≤ 0.054 mm		0.0534	0.0534
Continuity of Covering	Max. 3 pcs		Max. 0	Max. 0
Elongation	≥ 14 %		21	22
Breakdown Voltage	Min. 350 V		Min. 1502 V	Min. 1502 V
Flexibility	/		/	/
Adherence	No crack		Good	Good
Cut through	Continur 2 times pass		230 ℃/Good	230 ℃/Good
Solder Test	Max. 2		Max. 1.5	Max. 1.5
Bonding Strength	Min. 5		13	13
Electrical Resistance(20℃)	13.83-14.43 Ω/m		14.23	14.24

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
