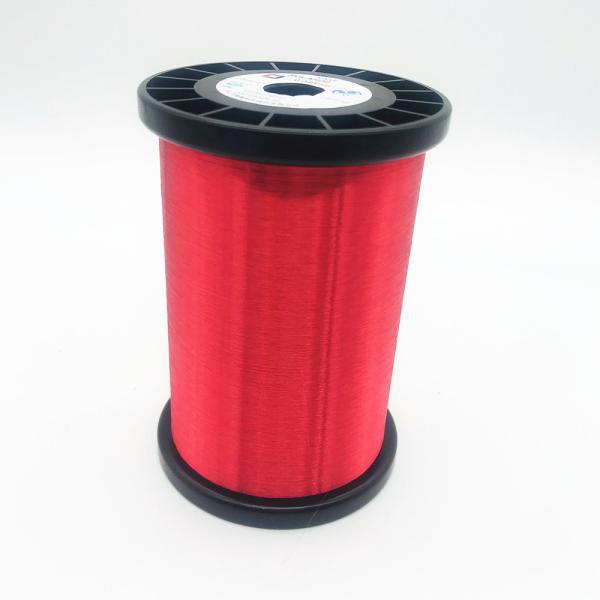

Polyurethane Super Thin Enameled Copper Magnet Wire Alcohol Red Color

Name: Polyurethane Super Thin Enameled Copper Magnet Wire Alcohol Red Color
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : UEW

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : Super thin magnet wire alcohol red color enameled copper wire

Diameter : 0.04mm

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Polyurethane

Rated Temperature : 155/180

Key word : Super thin magnet wire alcohol red color enameled copper wire

Contact Now

Super thin magnet wire alcohol red color enameled copper wire

Self-adhesive enameled copper wires almost all adopt a composite layer structure, that is, outside the general enameled wire (baseline), self-adhesive paint (self-adhesive layer) is applied.

Since the composite-layer enameled wire is made of two layers (or three layers) of enamel of different materials, compared with the single-coated enameled wire of the same material, the composite wire has both the respective properties of the two different materials and overcomes the problems caused by the The lack of performance brought by the same material.

In the composite layer self-adhesive enameled wire structure, the baseline is the main insulating part of the whole wire. In a sense (except for the composite effect), it ensures the insulation performance of the self-adhesive enameled wire; the self-adhesive layer is mainly to meet the coil forming process. Need, play the role of bonding and protect and strengthen the baseline (the effect of compound effect on the comprehensive performance of enameled copper wire.

Name	Super thin magnet wire alcohol red color enameled copper wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Key word	Super thin magnet wire alcohol red color enameled copper wire

Characteristics	Technical requests		Test Results
			Sample 1	Sample 2
Surface	Good		OK	OK
Bare Wire Diameter	0.040±	0.001	0.040	0.040
		0.001
Insulation Film Thickness	Min. 0.002 mm		0.003	0.003
Bonding Film Thickness	Min. 0.002mm		0.003	0.003
Overall Diameter	≤ 0.054 mm		0.0534	0.0534
Continuity of Covering	Max. 3 pcs		Max. 0	Max. 0
Elongation	≥ 14 %		21	22
Breakdown Voltage	Min. 350 V		Min. 1502 V	Min. 1502 V
Flexibility	/		/	/
Adherence	No crack		Good	Good
Cut through	Continur 2 times pass		230 ℃/Good	230 ℃/Good
Solder Test	Max. 2		Max. 1.5	Max. 1.5
Bonding Strength	Min. 5		13	13
Electrical Resistance(20℃)	13.83-14.43 Ω/m		14.23	14.24

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
