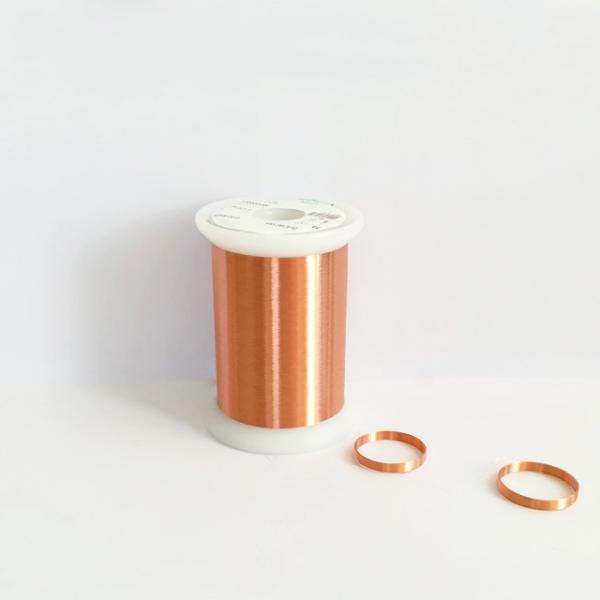

0.02mm Self Bonding Wire
We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...
We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines. Because of our strong R & D strength, our products have a wide range of applications.We have a full range of self-adhesive lines and a wide range of applications.Thermal class is155C, 180 C, 200 C, 220 C. Conductor material includes enameled round wire, enameled copper-clad aluminum wire.
APPLICATION
Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;High-temperature voice coils, such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers and high-temperature-resistant voice coils;micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.
SPECIFICATION
| | Characteristics | Technical requests | Test Results | Conclusion |
| Sample 1 | Sample 2 | Sample 3 |
| 1 | Surface | Good | OK | OK | OK | OK |
| 2 | Bare Wire Diameter | 0.020± | 0.001 | 0.020 | 0.020 | 0.020 | OK |
| 0.001 |
| 3 | Coating Thickness | / | / | / | / | OK |
| 4 | Overall Diameter | 0.022-0.024 | 0.0230 | 0.0230 | 0.0230 | OK |
| 5 | Conductor Resistance | ≤60.810Ω/m | 56.812 | 56.403 | 56.514 | OK |
| 6 | Elongation | ≥8% | 10% | 10% | 11% | OK |
| 7 | Breakdown Voltage | ≥130V | 212 | 247 | 262 | OK |
| 8 | Pinhole Test | ≤ 8 holes/5m | 1 | 0 | 1 | OK |
| | | | | | | |
| |
| | Test Items | Technical Requests | Results | Conclusion: Approved |
| 1 | Adhesive | Coating layer is good | OK |
| 2 | Cut-through | 200℃ 2mins no breakdown | OK |
| 3 | Heat Shock | 180±5℃/30min no crack | OK | Audit by | Tested by |
| 4 | Solder Ability | 390± 5℃ 2 Sec Smooth | OK | | Pan Lihong |
| 5 | Solvent Resistance | No blister, no expansion, no shed | OK |
