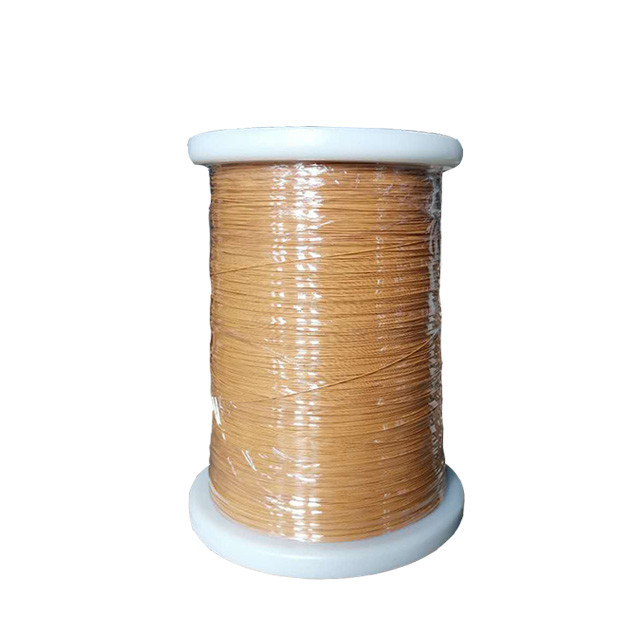

0.2mm Triple Insulated Wire UL Approved

Brand Name : Rvyuan

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

Price : Negotiation

Payment Terms : Negotiation

MOQ : 3000 meters

Packaging Details : Spool with carton

Delivery Time : 2-15 workding days

Supply Ability : Satisfy your demand

Model Number : 0.2mm

Diameter : 0.16mm

Thermal Clas : 180-220℃

Color : Nature

Material : Copper

Conductor type : Solid

Insulation : Enameled

Contact Now

0.2MM POLYURETHANE ENAMELED COPPER WIRE TRIPLE INSULATED COPPER WIRE TIW WIRE UL APPROVED

0.2mm Triple Insulated Wire UL Approved

TIW,triple insulated copper wire a unique product for small transformers. Three layer extruded coatings of high performance polymer resins gives excellent dielectric properties to this type of winding wires. Unlike enamelled wires, three layers of insulation are extruded over the copper conductor by an automated manufacturing process ensure perfect central position of conductor. The conventional enamelled wire winding coils requires insulation between the primary and secondary coils by means of barrier tape or inter layer tape, to isolate primary and secondary windings. Since three layers coating is having very high dielectric strength, it has very less creepage factor. This positive feature of TIW serves to downsize switching transformers, and promises high production efficiency and cost reduction. Depending on the design, the transformer size can be reduced up to 40% and weight up to 60% as compared to transformers made up of enamelled wires.

FEATURES AND BENEFITS

  • Greatly reduce the size and weight of transformers.

  • Greatly improve the efficiency of transformer by reducing the distance between coil.

  • Allow to wind directly on the top of enameled wires. Eliminate the interleaved insulation tapes, barriers and insulating sleeves.

  • Shock resistance, Corrosion Resistant

  • Excellent durability, Durable Resistant

  • Superior strength, Reliability

  • Rust resistant, Affordability

  • Low maintenance

APPLICATION

  • Transformers

  • Coils

  • Switchgear

  • Solenoid Valves

  • Automobiles

  • Electrical Appliance

  • Industrial Electronics

  • Pumps & Fans Motor

SPECIFICATION

Characteristics

Test Standard

Conclusion

Package

Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete

OK

Bare Wire Diameter

0.16±0.008MM

0.159-0.164

Overall Diameter

0.36±0.020MM

0.359-0.362

Conductor Resistance

MAX: 950.1Ω/KM

898.3Ω/KM

Breakdown voltage of straight wire

The length of wire 305mm,wind on the copper bar, test condition 1mA/60s5.0KV

OK

Elongation

MIN:15%

17.2-18.5%

Solder ability

430± 5℃ 1-2.5 Secs

OK

Conclusion

Qualified
