0.4mm X 24 Strands Litz Magnet Wire Stranded Insulated

Name: 04mm X 24 Strands Litz Magnet Wire Stranded Insulated
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.4mm X 24

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 100Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Taped Litz Wire

Single wire diameter : 0.4mm

No. of strands : 24

Insulation : PET/PI film

Breakdown voltage : 4000v

Thermal grade : 155/180

Contact Now

0.4mm x 24 Strands PET Taped Litz Wire High Frequency Enameled Copper Mylar Litz Wire

Possibilty to customize the litz wire according to your needs.

Taped high frequency litz wire constructions are mainly suitable for applications requiring a high break down voltage. Taping gives litz wire improved capability to withstand flexing and mechanical stress.

Application:

•RF transformers •RF Chokes •High frequency inductors •Medical equipment

Description	2UEW-F-PET 0.40*24
Conductor diameter(mm)	0.40
Conductor diameter tolerance (mm)	±0.005
Minimal insulation thickness(mm)	0.011
Maximal overall diameter (mm)	0.439
Thermal Class	155
Strand number	4*6
Pitch(mm)	22±3 40±3
Stranding direction	S
Insulation Layer	PET
Material specs(mm*mm or D)	0025*12
Times of Wrapping	1
Overlap(%)	50
Wrapping direction	Z
Max O. D(mm)	3.02
Max pin holes pc/6m	30
Max resistance (Ω/Km at20℃)	5.904
Min breakdown voltage	4000

0.4mm X 24 Strands Litz Magnet Wire Stranded Insulated

Product Tags:

0.4mm litz magnet wire

24 strands litz magnet wire

stranded copper litz wire

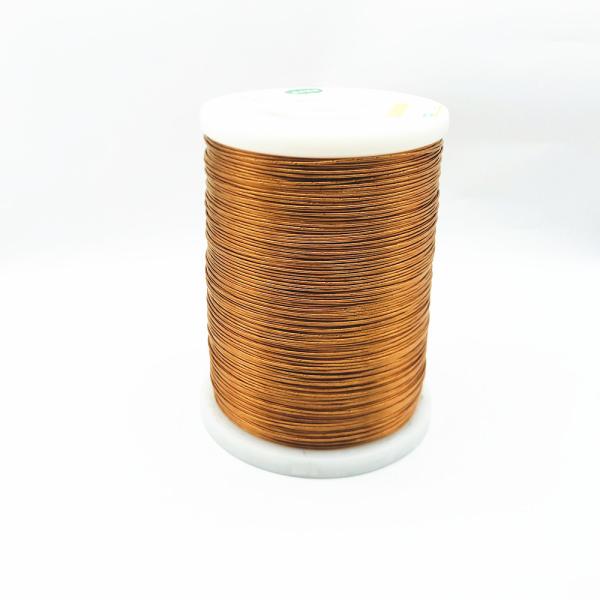

0.4mm X 24 Strands Litz Magnet Wire Stranded Insulated Images
