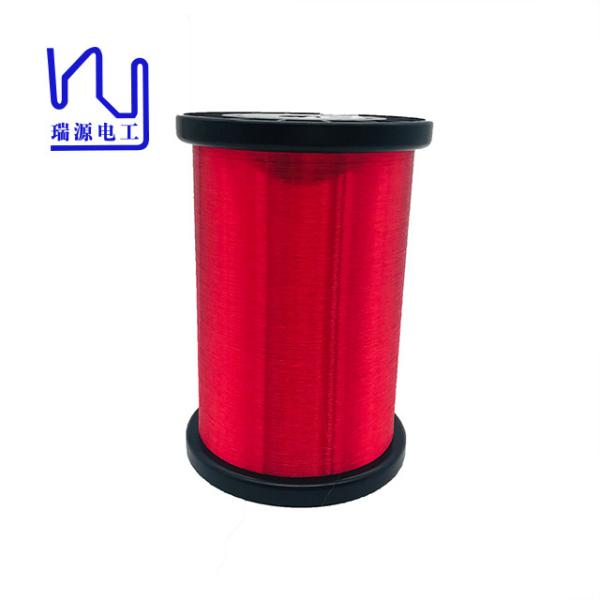

HCCA 2KS-AH Self Bonding Enamelled Copper Wire 0.04mm

Name: HCCA 2KSAH Self Bonding Enamelled Copper Wire 004mm
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.04mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 2kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 100Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : HCCA 2KS-AH 0.04mm Self Bonding Enameled Copper Wire

Insulation : UEW

Size : 0.04mm

Application : Voice coils

Key word : HCCA 2KS-AH 0.04mm Self Bonding Enameled Copper Wire

Thermal rating : 155/180/200

Contact Now

HCCA 2KS-AH 0.04mm Self Bonding Enameled Copper Wire

Both pure copper and copper clad with aluminum can both be used as conductor for wire when there’ s different needs of tone quality. Study shows that higher purity of copper is beneficial to improve sound quality. It can be seen that pure 4N (99.99%) copper is usually adopted in the market. Copper coated aluminum conductor self-adhesive wire conforms to requirement of improving utilization rate of wire without affecting sound quality (high-frequency voice coil). Bond coat of the wire can be activated by two methods of hot air and solvent. This wire is preferred by most customers due to its convenient process to shape and low cost. Diameter of this wire is relatively thin.

 	 			Product 			HCCA 2KS-AH 0.04mm Self Bonding Enameled Copper Wire
 			Conductor diameter 			0.04mm
 			Key word 			HCCA 2KS-AH 0.04mm Self Bonding Enameled Copper Wire
 			Coating 			UEW


Test Item

Unit

Standard Value

Reality Value


Conductor dimensions
 			mm 			0.040±0.001 			0.040 			0.040 			0.040

(Basecoat dimensions)
Overall dimensions
 			mm
Max. 0.053

 			0.0524 			0.0524 			0.0524
 			Insulation Film Thickness  			mm 			Min0.002 			0.003 			0.003 			0.003

Bonding Film Thickness
 			mm 			Min0.002 			0.003 			0.003 			0.003
 			(50V/30m)
Continuity of covering

pcs.
 			Max.60 			Max.0

Adherence
 			  			No crack 			Good

Breakdown Voltage
 			V 			Min.475 			Min.1302
 			Resistance to Softening
(Cut Through)

℃

Continue 2 times pass
 			200℃/Good
 			(390℃±5℃)
Solder test
 			s 			Max 2 			Max 1.5

Bonding Strength
 			g 			Min.5 			11
 			(20℃)
Electrical Resistance
 			Ω/m 			21.22-22.08 			21.67 			21.67 			21.67

Elongation
 			% 			Min.4 			8 			8 			8

Surface appearance

Smooth coloury

Good




Product Tags:

HCCA 2KS-AH Self Bonding Enamelled Copper Wire 0.04mm Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Tianjin Ruiyuan Electric Material Co,.Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Test Item	Unit	Standard Value	Reality Value
Conductor dimensions	mm	0.040±0.001	0.040	0.040	0.040
(Basecoat dimensions) Overall dimensions	mm	Max. 0.053	0.0524	0.0524	0.0524
Insulation Film Thickness	mm	Min0.002	0.003	0.003	0.003
Bonding Film Thickness	mm	Min0.002	0.003	0.003	0.003
(50V/30m) Continuity of covering	pcs.	Max.60	Max.0
Adherence		No crack	Good
Breakdown Voltage	V	Min.475	Min.1302
Resistance to Softening (Cut Through)	℃	Continue 2 times pass	200℃/Good
(390℃±5℃) Solder test	s	Max 2	Max 1.5
Bonding Strength	g	Min.5	11
(20℃) Electrical Resistance	Ω/m	21.22-22.08	21.67	21.67	21.67
Elongation	%	Min.4	8	8	8
Surface appearance		Smooth coloury	Good
