100KHz Single Phase High Frequency High Voltage Transformer Flyback Transformer

Name: 100KHz Single Phase High Frequency High Voltage Transformer Flyback Transformer
Brand: Rvyuan
Price: 1 USD

100KHz Single Phase High Frequency High Voltage Transformer Flyback Transformer Manufactures

Brand Name : Rvyuan

Model Number : EE/EP/EC

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Size : 24*22*18mm

Standard : IEC/JIS/NEMA

Rated voltage : 10kV-35kV

Inductance : 1-6=920uH±15%

Recommened power : 10-15W

Working frequency : 100KHz 1Vrms

Contact Now

EE22HIGH FREQUENCY HIGH VOLTAGE INVERTER DC TRANSFORMER FLYBACK TRANSFORMER

Switch mode flyback transformers are used extensively in electronic applications, usually within a switch mode power supply. A switch mode power supply is usually powered from a D.C. source, such as a battery. The switching mode power supply converts the input D.C. source to one or more output D.C. sources.

EE22
Dimension(mm)	Pin Quantity(pcs)	Pin Array(mm)	Power
242218	8+8	2.5	10-15W
Resistance(MAX)	Inductance	Leakage(MAX)	Frequency
1-6=390mΩ±20%	1-6=920uH±15%	1-6=50uH	100KHz 1Vrm

100KHz Single Phase High Frequency High Voltage Transformer Flyback Transformer

Product Tags:

high frequency transformer

electrical transformers

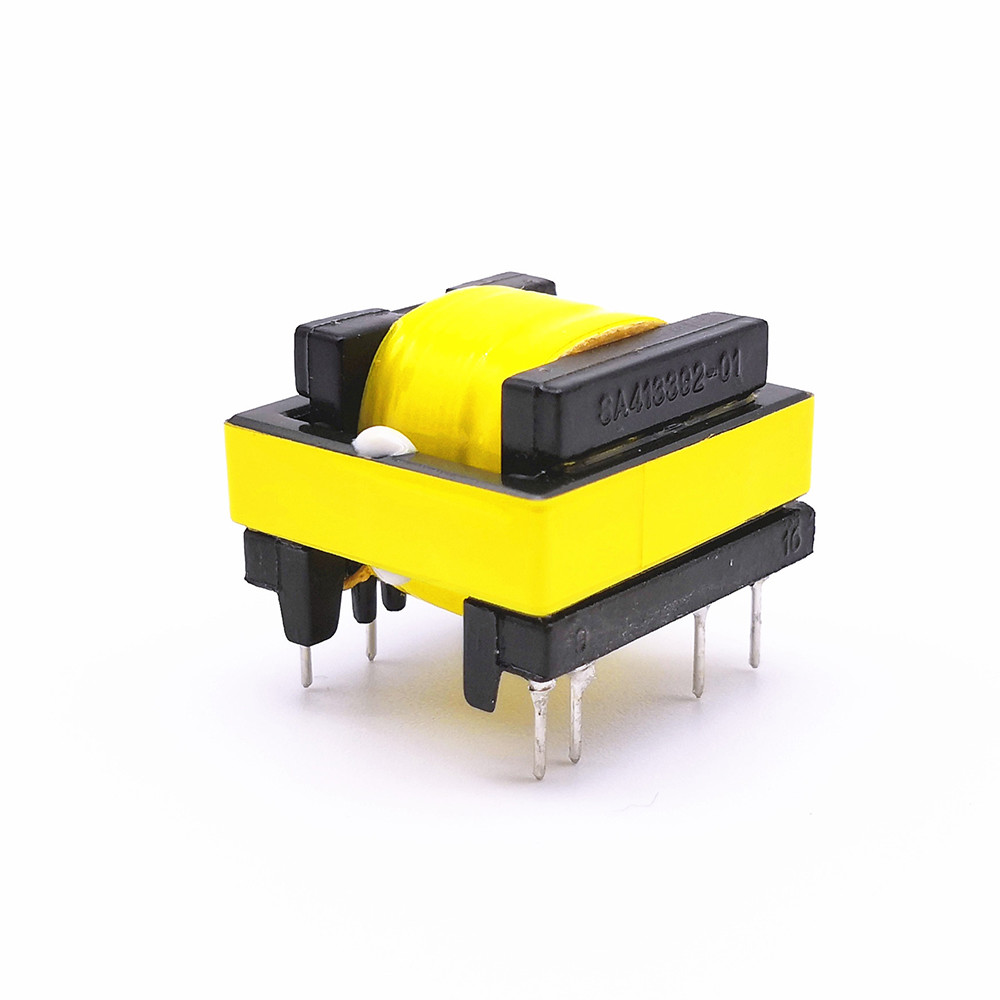

100KHz Single Phase High Frequency High Voltage Transformer Flyback Transformer Images
