0.1mm High Voltage 4400v Fiw Wire Enameled Copper

Name: 01mm High Voltage 4400v Fiw Wire Enameled Copper
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : FIW

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10 Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : FIW wire

Material : Copper

Diameter : 0.1mm

Insulation : Enamel coating

Breakdown voltage : 4464V

MOQ : 10kg

Contact Now

0.1mm High Voltage 4400V Enameled Copper Wire FIW4 Wire

Fully insulated (FIW) zero-defect enamelled round copper wire is the wirewith highthermal class, Zero-defect strengthened insulation and highvoltage resistance compliance with IEC60317-56 / IEC60950U and NEMAMW85-C. FIW is an alternative wire to build electronic transformerstypically using TIW (Triple Insulated Wires)The wire can meet therequirements of miniaturized components,good winding performance andlow cost, applied small transformer, electronic switch etc.

Type & Diameter FIW4 0.100mm
Test item	Standard Value	Reality value
Test item	Standard Value	Min.	Ave	Max.
Conductor dimensions(mm)	0.100±0.002	0.100	0.100	0.100
Overall dimensions(basecoat)(mm)	Max.0.144	0.140	0.141	0.141
Insulation film thickness(mm)	Min.0.033	0.040	0.041	0.041
Continuity of covering(pcs)	Max. 0	Max. 0
Adherence	Coating layer is good	OK
Breakdown Voltage(V)	Min.4464	Min.8869
Resistance to slftening(℃)	Continue 2 times pass	230℃/Good
Solder test(390℃±5℃)(s)	Max. 2	Max. 1.5
Elongation(%)	Min.32	39	40	40
Electrical Resistance/km	Max. 2286	2186	2186	2187
Surface appearance	Smooth colory	Good

0.1mm High Voltage 4400v Fiw Wire Enameled Copper

Product Tags:

fiw wire high voltage

4400v fiw wire

0.1mm fine magnet wire

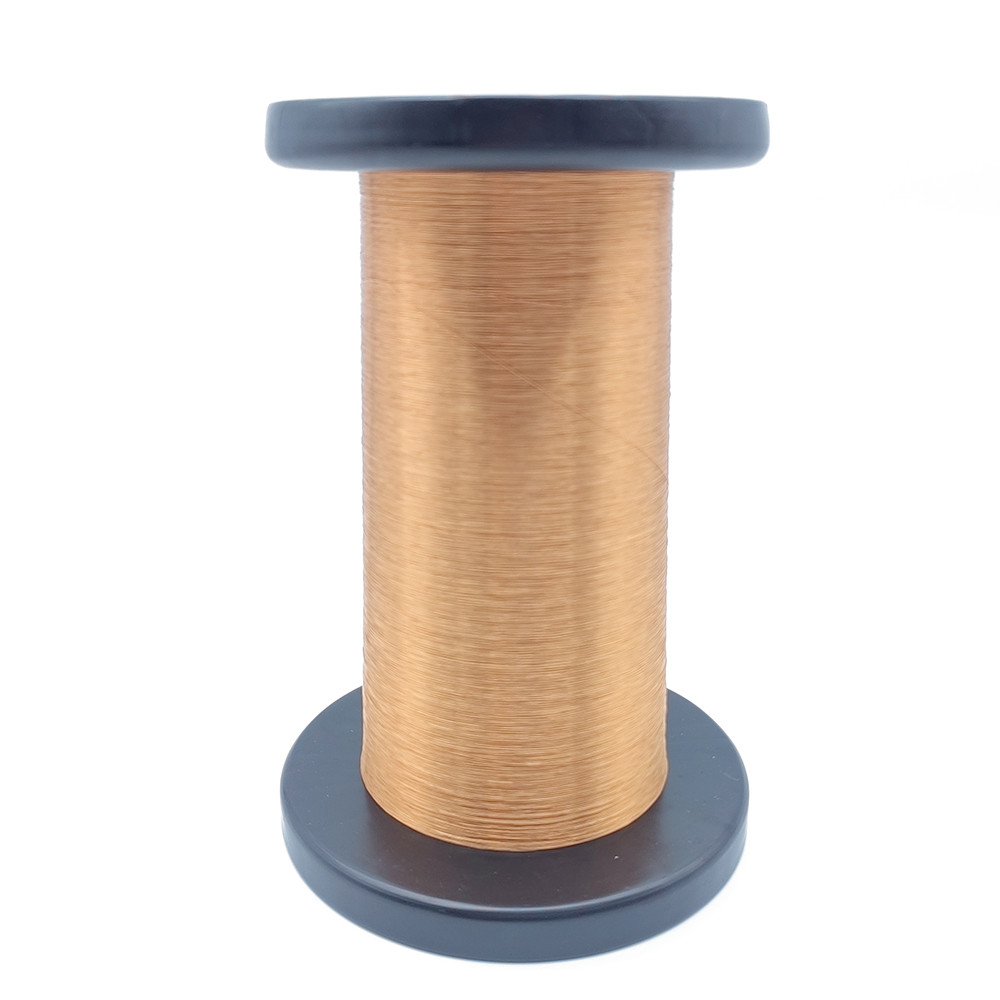

0.1mm High Voltage 4400v Fiw Wire Enameled Copper Images
