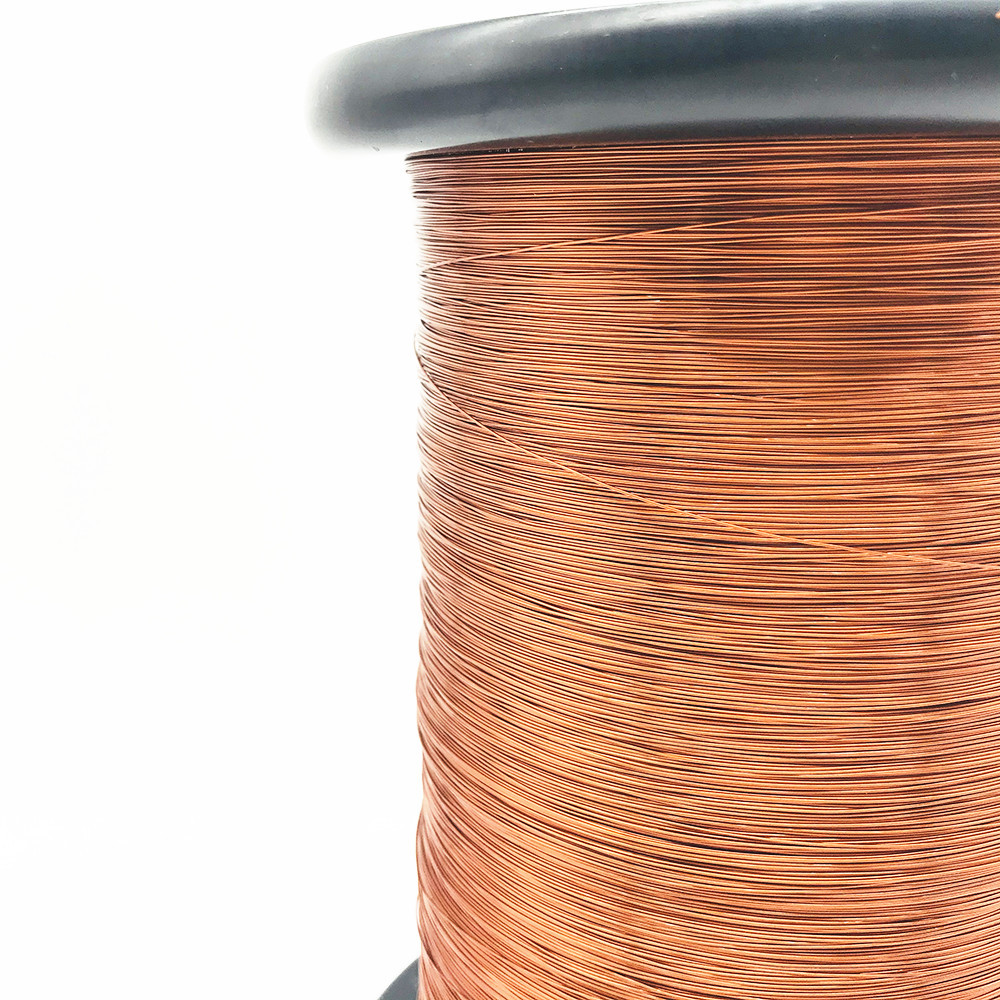

0.45mm Enameled Copper High Voltage Fiw Wire For Transformer Winding

Name: 045mm Enameled Copper High Voltage Fiw Wire For Transformer Winding
Brand: Ruiyuan
Price: 1 USD

0.45mm Enameled Copper High Voltage Fiw Wire For Transformer Winding Manufactures

Brand Name : Ruiyuan

Model Number : FIW

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 100Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : FIW

Material : Copper

Size : 0.45mm

Insulation : UEW

Thermal rating : 180

Contact Now

0.45mm Enameled Copper Wire High Voltage FIW Wire For Transformer Winding

Fully insulated (FIW) zero-defect enamelled round copper wire is the wirewith highthermal class, Zero-defect strengthened insulation and highvoltage resistance compliance with IEC60317-56 / IEC60950U and NEMAMW85-C. FIW is an alternative wire to build electronic transformerstypically using TIW (Triple Insulated Wires)The wire can meet therequirements of miniaturized components,good winding performance andlow cost, applied small transformer, electronic switch etc.

Nom.Diameter(mm)	Min. Breakdown voltage (V)
Nom.Diameter(mm)	Grade ofFIW3	Grade ofFIW4	Grade ofFIW5	Grade ofFIW6
0.040	1458	2349	3159	3969
0.050	1782	2673	3564	4455
0.060	2025	3159	4212	5265
0.071	2187	3159	4212	5265
0.080	2268	3402	4536	5670
0.090	2430	3564	4698	5832
0.100	2592	3888	5184	6480
0.120	2888	4256	5624	6992
0.140	3116	4636	6156	7676
0.160	3420	5092	6764	8436
0.180	3724	5548	7372	9196
0.200	3952	5852	7752	9652
0.250	4712	6992	9272	11552
0.300	5244	7600	9956	12312
0.400	5460	7630	9800	11970
