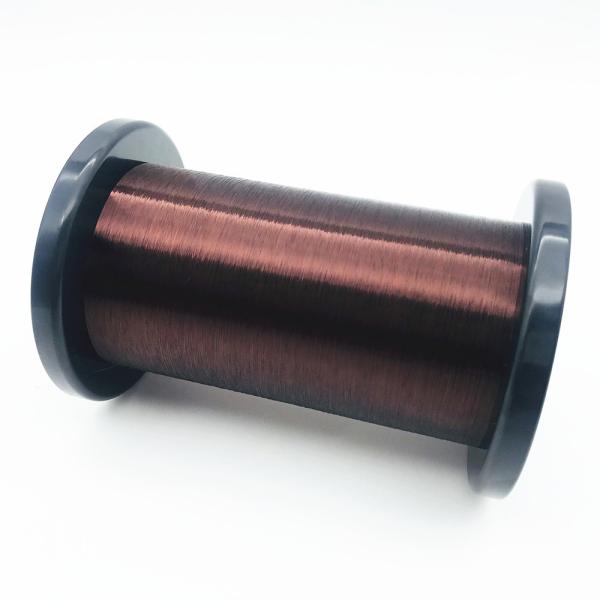

Ul Passed 42 Awg / 43 Awg Plain Enamel Pickup Wire

Name: Ul Passed 42 Awg 43 Awg Plain Enamel Pickup Wire
Brand: Ruiyuan
Price: 1 USD

Ul Passed 42 Awg / 43 Awg Plain Enamel Pickup Wire Manufactures

Brand Name : Ruiyuan

Model Number : 0.055

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 2kgs

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Negotiation

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Plain enameled wire for guitar pickup

Diameter : 0.063mm/awg 42

Color : Dark brown

Resistance : ≤ 5.900 Ω/m

Contact Now

42 AWG / 43 AWG Magnet Wire Plain Enameled Copper Wire For Guitar Pickup Made In China

Plain Enamel wires are manufactured to single-build dimensional standards. Was used in vintage pickups from the '50s and '60s and is commonly used today in many of the reissue and custom shop guitar pickups.

This wire is mainly used in winding guitar pickups today, and is a favorite among many custom pickup shops.
  	 			AWG 42 (0.063mm)enameled copper wire
 			Characteristics 			Technical requests 			Test results
 			Sample 1 			Sample 2 			Sample 3
 			Conductor diameter 			0.063±0.002 			0.063 			0.063 			0.063
 			Resistance 			≤ 5.900 Ω/m 			5.478 			5.512  			5.482
 			Breakdown voltage 			≥ 400 V 			1768 			1672  			1763


Ul Passed 42 Awg / 43 Awg Plain Enamel Pickup Wire

Product Tags:

43 awg plain enamel pickup wire

42 awg plain enamel pickup wire

ul 42 awg pickup wire

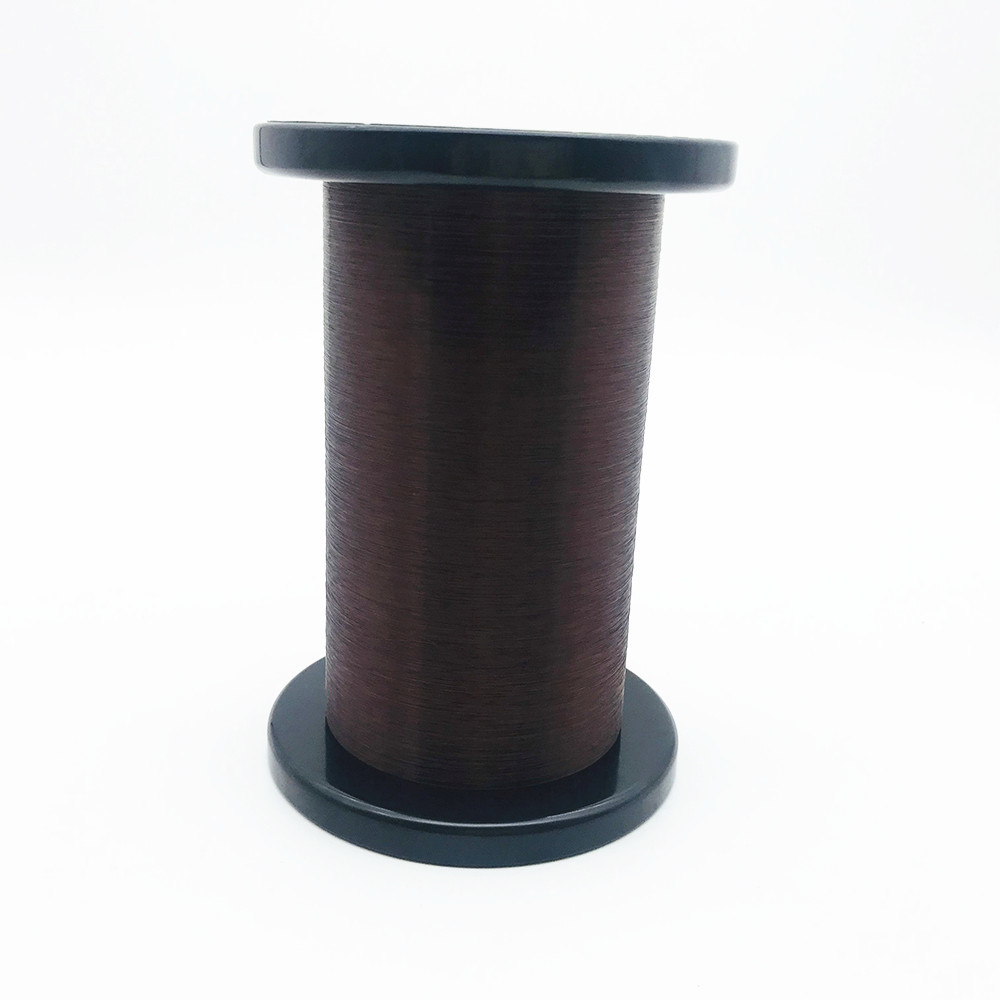

Ul Passed 42 Awg / 43 Awg Plain Enamel Pickup Wire Images
