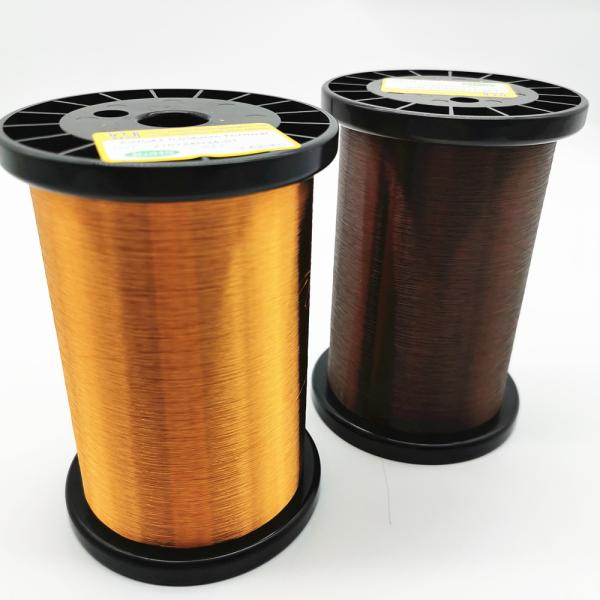

43 Awg Copper Magnet Wire Heavy Formvar / Plain Enamel

Name: 43 Awg Copper Magnet Wire Heavy Formvar Plain Enamel
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.056mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 2kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 100Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : 43AWG heavy formvar / plain enamel copper guitar pickup wire

Insulation : Plain/heavy formvar

Size : 0.056mm

Application : Guitar pickups coils

Quantity : 1.5kg/roll

Key word : 43AWG heavy formvar / plain enamel copper guitar pickup wire

Contact Now

43AWG heavy formvar / plain enamel copper guitar pickup wire

Winding methods:

·Machine Winding – a machine spins the bobbin and moves back and forth at a regular pace, distributing the wire evenly across the bobbin.

·Hand Winding – a machine spins the bobbin, but the magnet wire goes through the hands of an operator who distributes the wire along the bobbin. This is how the earliest pickups were wound.

·Scatter Winding (Also called Random Wrap) – a machine spins the bobbin, and the magnet wire goes through the hands of an operator who distributes the wire along the bobbin in an intentionally scattered or random pattern.

43AWG heavy formvar / plain enamel copper guitar pickup wire
Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2	Sample 3
Surface	Good	OK	OK	OK
Bare Wire Diameter	0.056±0.001	0.056	0.0056	0.056
Conductor Resistance	6.86-7.14 Ω/m	6.98	6.98	6.99
Breakdown voltage	≥ 1000V	1325

 	 			Product
 			43AWG heavy formvar / plain enamel copper guitar pickup wire

 			Conductor diameter
 			0.056mm±0.002

 			Key word
 			43AWG heavy formvar / plain enamel copper guitar pickup wire

 			Coating
 			Heavy formvar
