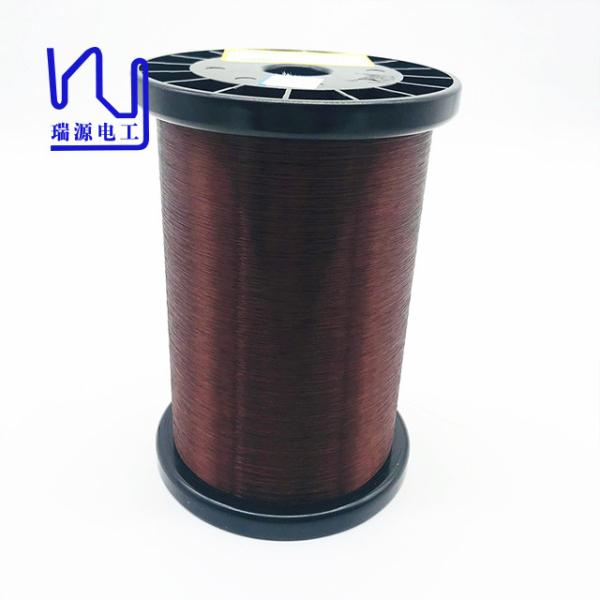

43 AWG Plain guitar pickup wire
We supply some of the world’s guitar pickup craftsmen with wire custom made to order.
Our Pickup Wire started with an Italian customer several years ago, after a year of R&D, and half-year blind and device test in Italy, Canada, Australia. Since lauched into markets, Ruiyuan Pickup Wire won a good reputation and has been chosen by over 200 pickups clients from Europe, America, Asia, etc.
Popular insulation options
* Plain
* Poly
* Heavy formvar
Customized colors: only 20kg you can choose your exclusive color
Guitar pickup specialists
We mainly manufacture Plain, heavy Formvar insulation and poly insulation wire, for the
simple reason that they just sound best to our ears.
The thickness of the wire is usually measured in AWG, which stands for American Wire Gauge. In guitar pickups, 42 AWG is the one
that’s most commonly used. But wire-types measuring from 41 to 44 AWG are all being used in the construction of guitar pickups.
The most professional guitar pickup wire manufacturer, we offer formvar/plain enameled copper wire. 42awg, 43awg, 44awg
The wire is mainly used in winding guitar pickups , and is a favorite among many custom pickup shops.
| 42awg enameled copper wire |
| Characteristics |
Technical requests |
Test results |
| Conductor diameter |
0.063mm±0.002 |
0.063mm |
0.063mm |
0.063mm |
| Conductor resistance |
≤ 5.900 Ω/m |
5.478 |
5.512 |
5.482 |
| Breakdown voltage |
≥ 400 V |
1768 |
1672 |
1723 |
In addition to the most commonly used 42 gauge plain lacquered pickup wire, we also offer 42 plain (0.056mm) wire for guitar, Plain guitar pick up wire was common in the ’50s and into the ’60s before the new insulations had been invented.
Popular insulation options include:
- Plain Enamel
- Heavy formvar enamel
| AWG 43 plain (0.056mm) plain guitar wire |
Characteristics
|
Technical requests
|
Test Results |
| Sample 1 |
Sample 2 |
Sample 3 |
| Surface |
Good |
OK |
OK |
OK |
| Bare Wire Diameter |
0.056±0.001 |
0.056 |
0.0056 |
0.056 |
| Conductor Resistance |
6.86-7.14 Ω/m |
6.98 |
6.98 |
6.99 |
| Breakdown voltage |
≥ 1000V |
1325 |
