40 Awg Copper Litz Cable For High Frequency Transformer

Name: 40 Awg Copper Litz Cable For High Frequency Transformer
Brand: Ruiyuan
Price: 1 USD

40 Awg Copper Litz Cable For High Frequency Transformer Manufactures

Brand Name : Ruiyuan

Model Number : 40awg/17

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Silk covered litz wire

Single wire diameter : 40awg(0.08mm)

Number of strands : 17

Thermal grade : 155

Breakdown voltage : Min. 1100V

Jacket : Nylon

Contact Now

40AWG / 17 USTC155 Silk Covered Litz Wire Copper Wire Stranded For High Frequncey Transformer

Litz wire employs a stranded wire with individually insulated conductors (forming abundle). Our factory can customize various types of Litz wire, which is one of our company's main products and best-selling products,including silk covered wire, Mylar wire, etc.

Characteristics	Technical requests	Test Results
Conductor diameter(mm)	0.08±0.003	0.078	0.080
Overall conductor diameter(mm)	0.087-0.103	0.090	0.093
Maximum outer diameter(mm)	0.52	0.42	0.47
Pitch(mm)	27±3	√	√
Maximum Resistance(Ω/m 20℃)	0.2221	0.200	0.202
Minimum Breakdown Voltage(V)	1100	2700	2600
Solderability	390±5℃, 6s	√	√
Pinhole(faults/6m)	Max.20	3	2

40 Awg Copper Litz Cable For High Frequency Transformer

Product Tags:

40 awg copper litz cable

high frequency transformer copper litz cable

0.08 mm copper litz cable

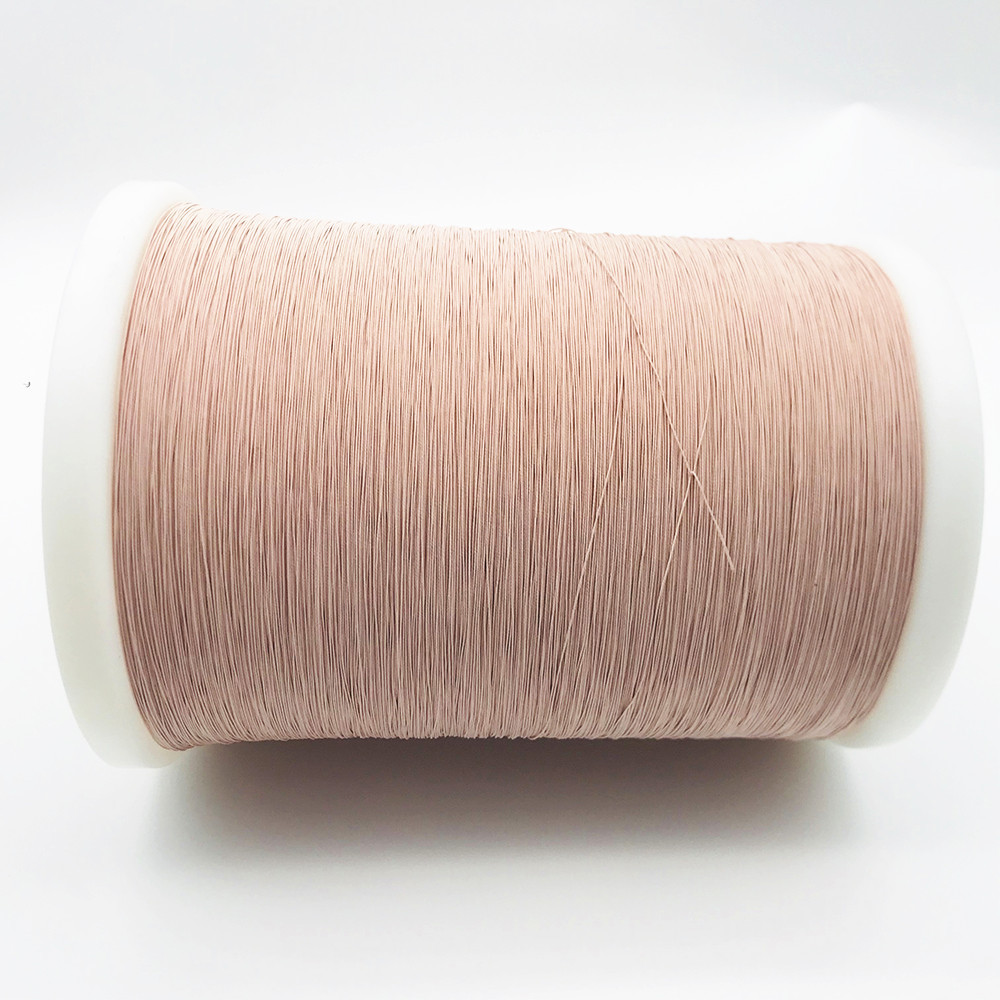

40 Awg Copper Litz Cable For High Frequency Transformer Images
