High Frequency Copper Litz Wire Silk Covered Enameled 0.3mm * 170 Strands

Name: High Frequency Copper Litz Wire Silk Covered Enameled 03mm 170 Strands
Brand: Rvyuan
Price: 1 USD

High Frequency Copper Litz Wire Silk Covered Enameled 0.3mm * 170 Strands Manufactures

Brand Name : Rvyuan

Model Number : 0.3mm * 170

Certification : UL/ROHS/ICE/ISO9001/ISO14001

Place of Origin : China

MOQ : 20 Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 10-15 workding days

Packaging Details : Carton

Product name : Silk covered litz wire

Insulation Material : UEW

Breakdown voltage : 2700V

Thermal Class : 155

Strands : 170

Twist pictch : 3-70

Contact Now

0.3MM * 170 STRANDS HIGH FREQUENCY COPPER LITZ WIRE SILK COVERED ENAMELED COPPER LITZ WIRE

What is USTC wire? It is insulation wire covered with one layer or multi layer insulating fiber (nylon, polyester fiber, natural silk and adhesive silk) on the surface of single enameled wire or stranded wire.USTC wire is a special type of wire used in electronics. The wire is designed to reduce the skin effect and proximity effect losses in conductors. It consists of many thin wires, individually coated with an insulating film and twisted or woven together, following a carefully prescribed pattern often involving several levels (groups of twisted wires are twisted together, etc.).The size range we can make is 0.03-0.8mm, and strands number is 2-4000.

High Frequency Copper Litz Wire Silk Covered Enameled 0.3mm * 170 Strands

	Characteristics	Technical requests	Test Results		Conclusion
1	Inner diameter	0.15±0.003 mm	0.15mm		OK
2	Thickness of coating	≥ 0.012mm	0.065		OK
3	Outer diameter	≤ 0.177mm	0.163		OK
4	Twist direction	S/Z	S		OK
5	Strands	640	640		OK
6	Twist Pitch	20.5±3 mm	20.6		OK
7	Breakdown Voltage	1300V	2700V		OK
8	Conductor Resistance	≤ 1.66Ω/km	1.34		OK
9	Solderability	YES	YES		OK
10	Pinhole	≤640PCS/5m	17pcs		OK
Remark: The product meet the requirement of RoHS				Conclusion: Approved

Product Tags:

served litz wire

rectangular litz wire

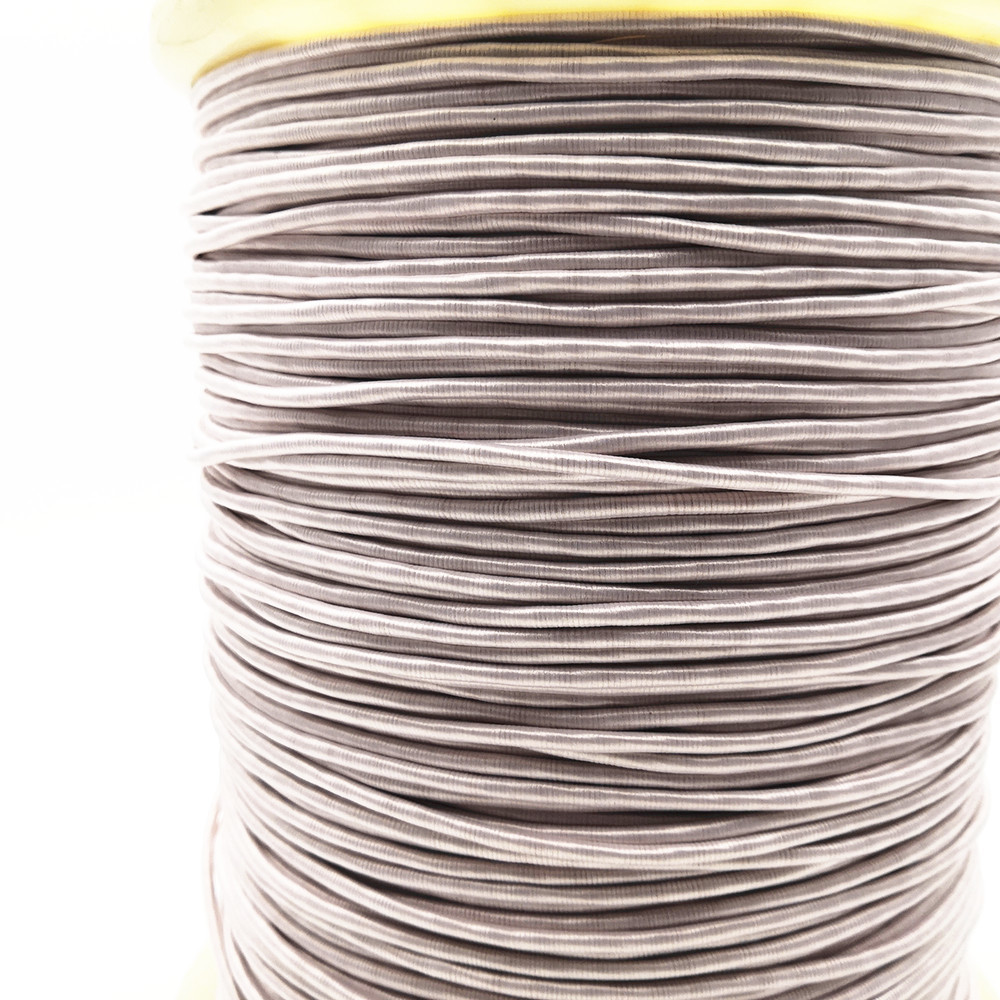

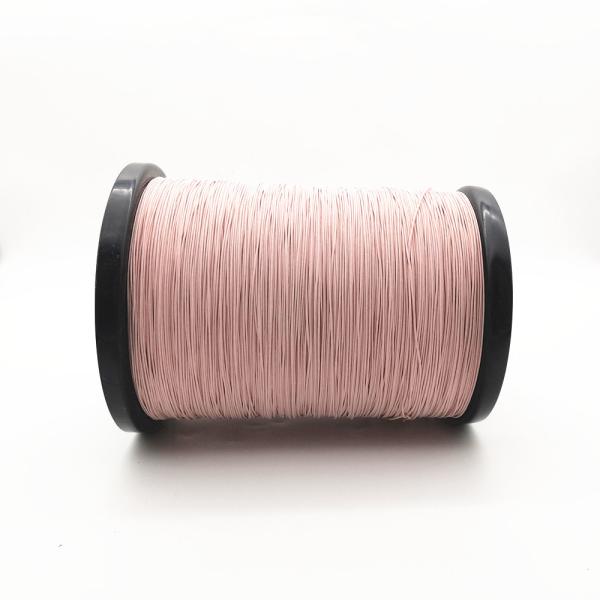

High Frequency Copper Litz Wire Silk Covered Enameled 0.3mm * 170 Strands Images
