0.20mm Diameter Taped Copper Litz Wire 0.2x200 High Frequency Enameled Wire

Name: 020mm Diameter Taped Copper Litz Wire 02x200 High Frequency Enameled Wire
Brand: Rvyuan
Price: 1 USD

0.20mm Diameter Taped Copper Litz Wire 0.2x200 High Frequency Enameled Wire Manufactures

Brand Name : Rvyuan

Model Number : 0.2x200

Certification : ISO9001/ISO14001 /UL/SGS

Place of Origin : China

MOQ : 20Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Diameter : 0.20mm

Temperature : 155

Certificate : IEC/NEMA/JIS/RoHS/ISO

AWG SIZE : 41

Conductor : Copper

Strands : 200

Breakdown voltage : 9000v

Insulation : 2UEW

Contact Now

0.20MM DIAMETER TAPED COPPER LITZ WIRE 0.2*200 HIGH FREQUENCY ENAMELED WIRE

Litz wire is a type of cable used in electronics to carry alternating current. The wire is designed to reduce the skin effect and proximity effect losses in conductors used at frequencies up to about 1 MHz. It consists of many thin wire strands, individually insulated and twisted or woven together, following one of several carefully prescribed patterns, often involving several levels (groups of twisted wires are twisted together, etc.). The result of these winding patterns is to equalize the proportion of the overall length over which each strand is at the outside of the conductor, an effect not achieved with simple twisted-strand hookup wire.

SPECIFICATION

	Characteristics	Technical requests		Test Results		Conclusion
				Sample		ok
1	Surface	Good		OK		ok
2	Breakdown Voltage	≥6800V		9160		ok
3	Pinhole Test	≤ 20 hole/6m		0		ok
4	Outer diameter	≤ 0.226 mm		0.221		ok
5	Inner diameter	0.2±0.003 mm		0.2		ok
6	Thickness of Mylar film(+0.002mm)	0.008 mm		0.009		ok
7	Overlapping Ratio	>33%		50%		ok
8	Direction	Bunch	Left	OK		ok
		Film cover	Left	OK		ok
9	Conductor Resistance	≤ 2.913Ω/km		2.462		ok
10	Pitch	68±3 mm		70		ok
Remark:					Conclusion:
					Approved

0.20mm Diameter Taped Copper Litz Wire 0.2x200 High Frequency Enameled Wire

Product Tags:

soldering litz wire

rectangular litz wire

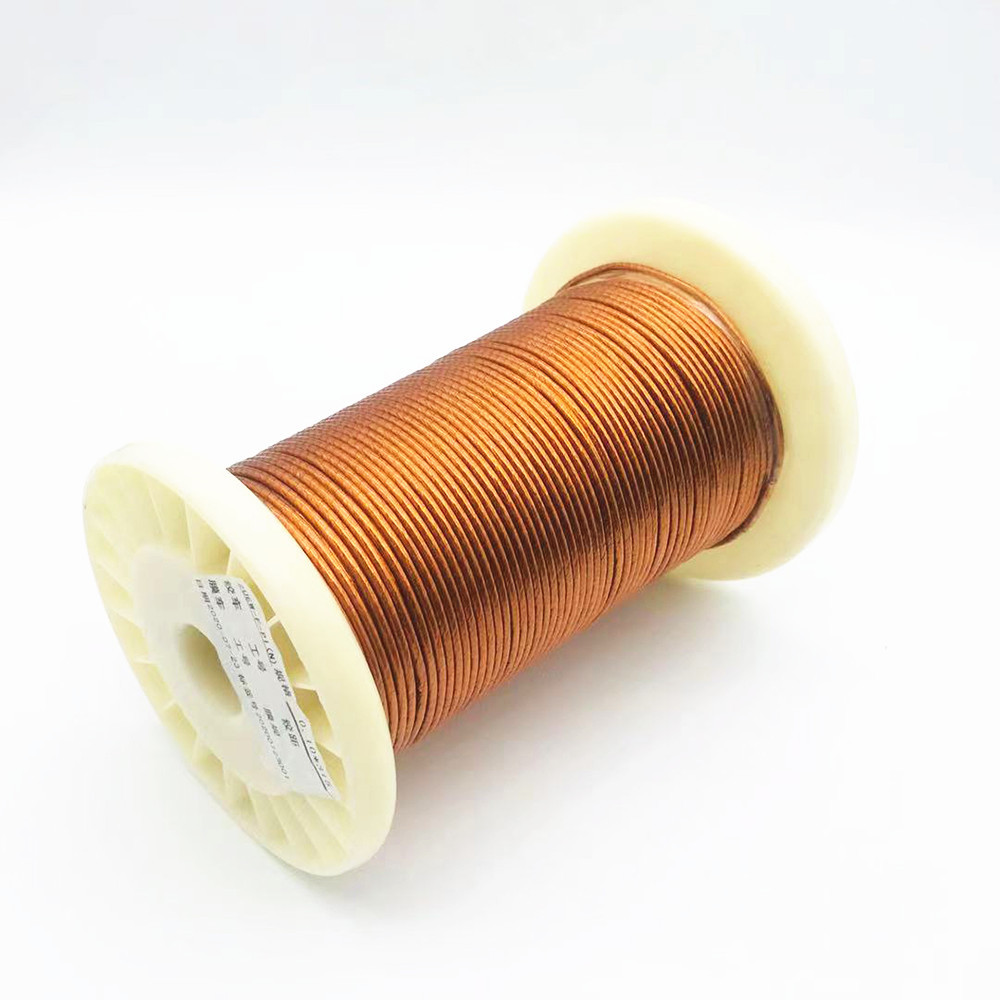

0.20mm Diameter Taped Copper Litz Wire 0.2x200 High Frequency Enameled Wire Images
