0.1mm * 60 USTC Silk Covered Stranded Copper Litz Wire

Name: 01mm 60 USTC Silk Covered Stranded Copper Litz Wire
Brand: Ruiyuan
Price: 1 USD

0.1mm * 60 USTC Silk Covered Stranded Copper Litz Wire Manufactures

Brand Name : Ruiyuan

Model Number : 0.1mm * 60

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Silk covered litz wire

No. of strands : 60

Single wire diameter : 0.1mm

Voltage : 1500V Min.

Thermal grade : 155

Contact Now

0.1mm * 60 Strands USTC Silk Covered Stranded Wire Copper Litz Wire

Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.

FEATURES AND BENEFITS

(a) Minimize the power losses due to "skin effect".

(b) Superior "Q" characteristics at high frequencies.

(c) Excellent resistance to abrasion and solvent,
(d) Excellent electricity performance
(e) Excellent heat shock, adherence and flexibility
(f) High cut through

Characteristics	Technical requests	Test Results
Conductor diameter(mm)	0.1±0.007	0.095
Overall conductor diameter(mm)	0.105-0.125	0.106-0.109
No. Of strands	60	√
Maximum outer diameter(mm)	1.16	0.93-0.98
Pitch(mm)	27±3	√
Maximum Resistance(Ω/m 20℃)	0.04357	0.0401
Minimum Breakdown Voltage(V)	1100	3200
Solderability	380±5℃, 7s	√
Pinhole(faults/6m)	Max. 40	6

0.1mm * 60 USTC Silk Covered Stranded Copper Litz Wire

Product Tags:

Stranded Copper Litz Wire

Silk Covered Copper Litz Wire

Litz 0.1 mm wire

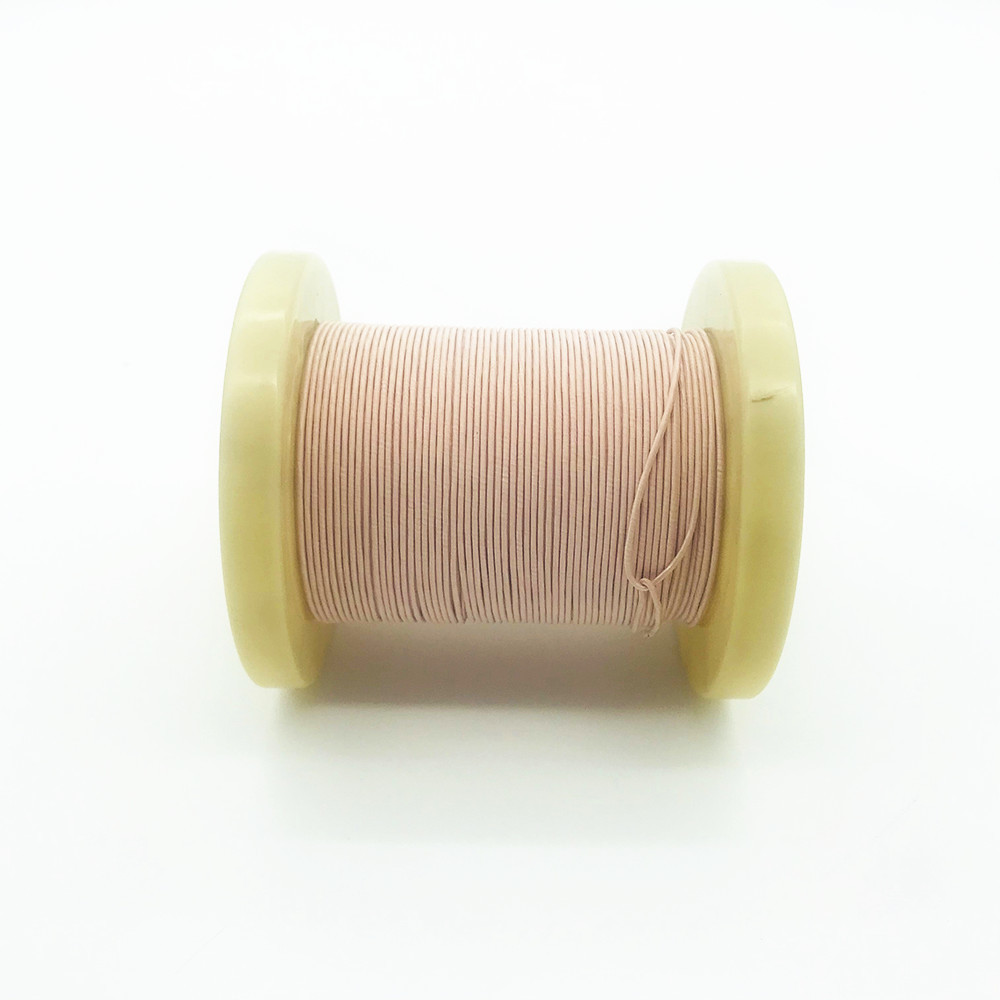

0.1mm * 60 USTC Silk Covered Stranded Copper Litz Wire Images
