0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire

Name: 005mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire
Brand: Ruiyuan
Price: 1 USD

0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire Manufactures

Brand Name : Ruiyuan

Model Number : 0.05*660

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Silk covered litz wire

No. of strands : 660

Single wire diameter : 0.05mm

Voltage : 1500V Min.

Thermal grade : 155

Contact Now

0.1mm x 660 Strands Silk Covered Lize Wire Twist Copper Enameled Wire For Winding

Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.

Test report: 0.05mm x 660 strands	Standard	1	2
Single wire diameter	0.055-0.069mm	0.058mm	0.061mm
Overall diameter	Max. 2.41mm	1.85mm	1.92mm
Pitch	40±3	√	√
Max resistance(Ω/Km at 20℃)	Max. 0.01552	0.01379	0.01381
Mini breakdown voltage	Min.950	2300	2400
Max pin holes fault/6m	Max.103	18	15

0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire

Product Tags:

660 Strands Litz Magnet Wire

0.1mm Litz Magnet Wire

0.1mm Litz Magnet Winding Wire

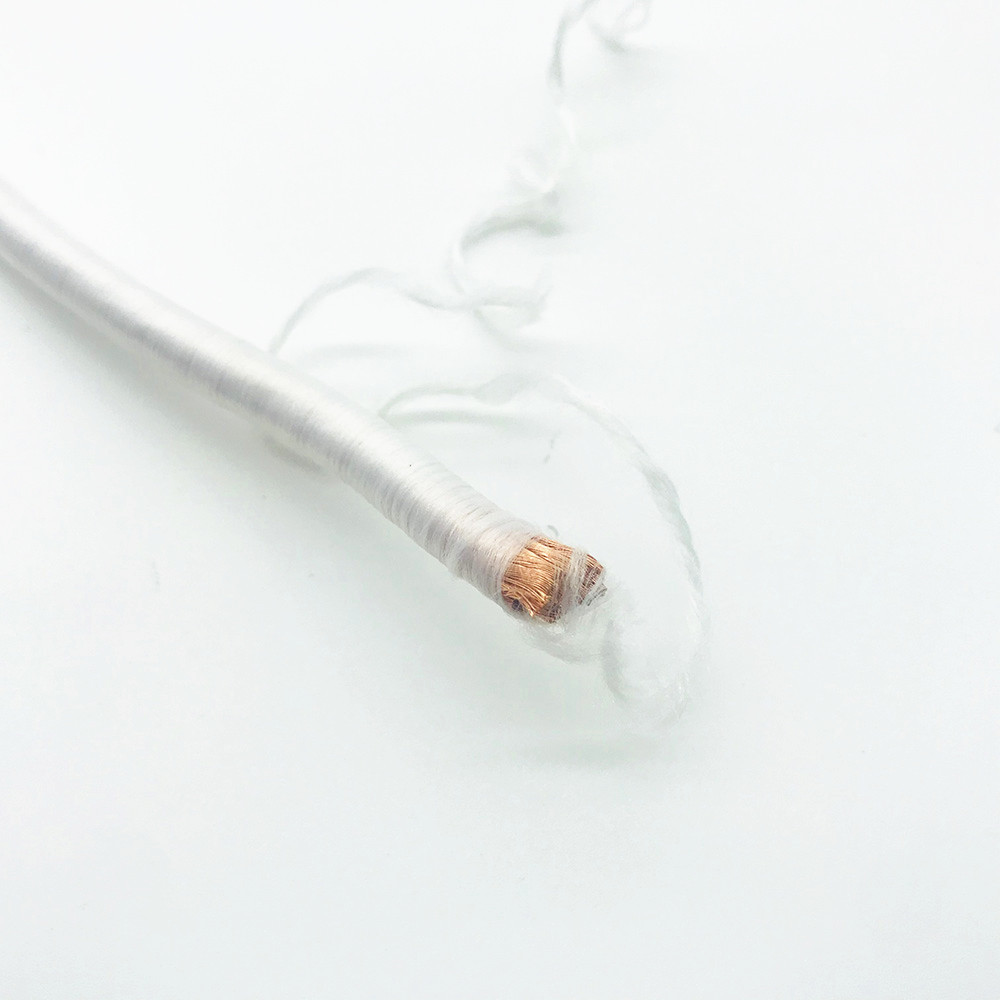

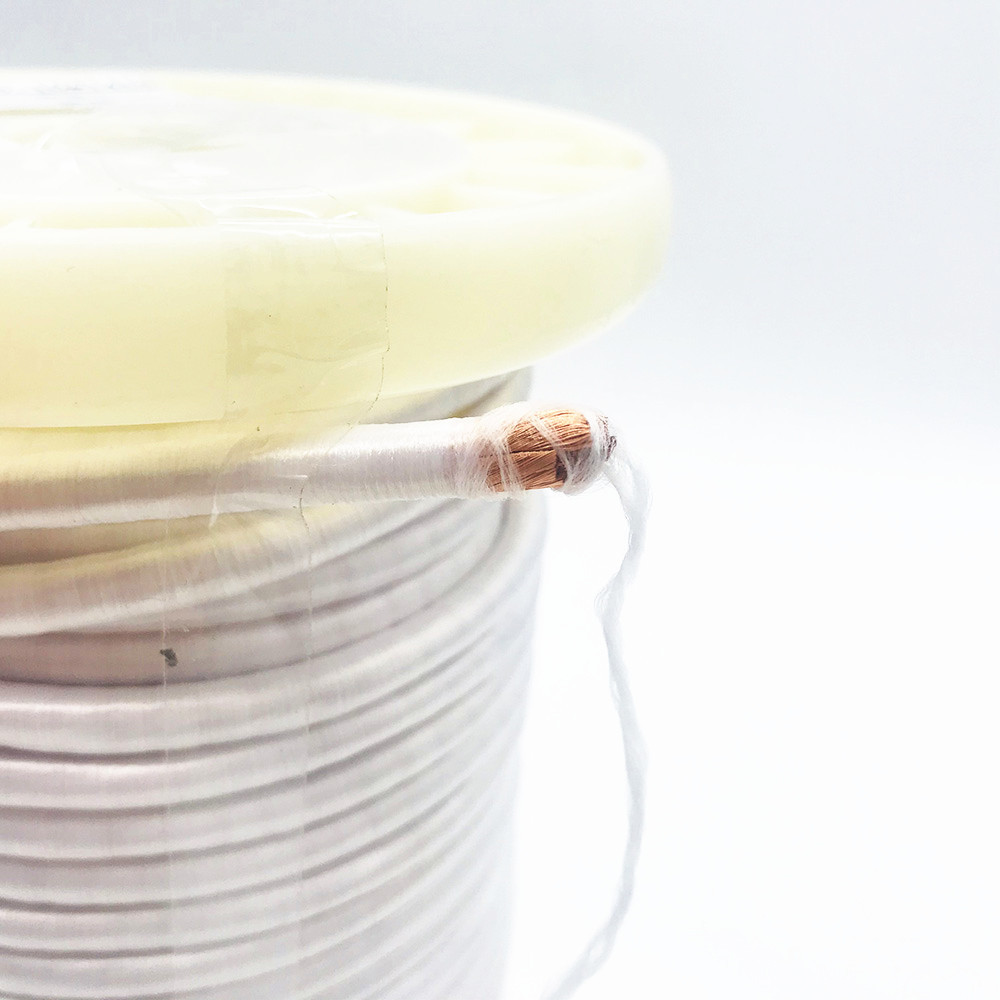

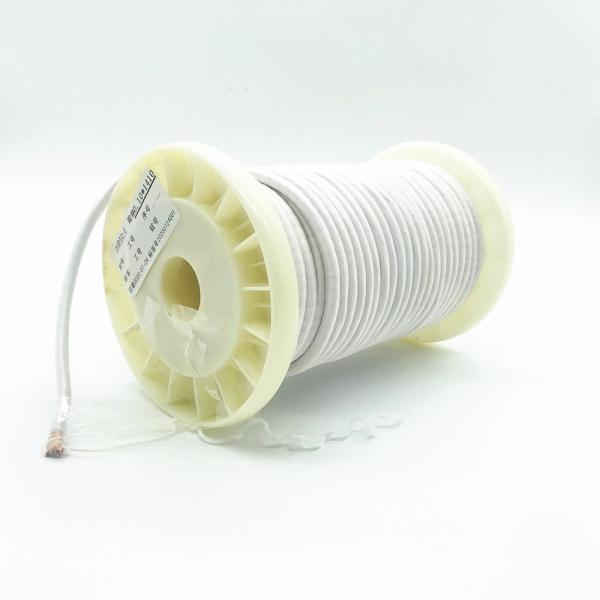

0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire Images
