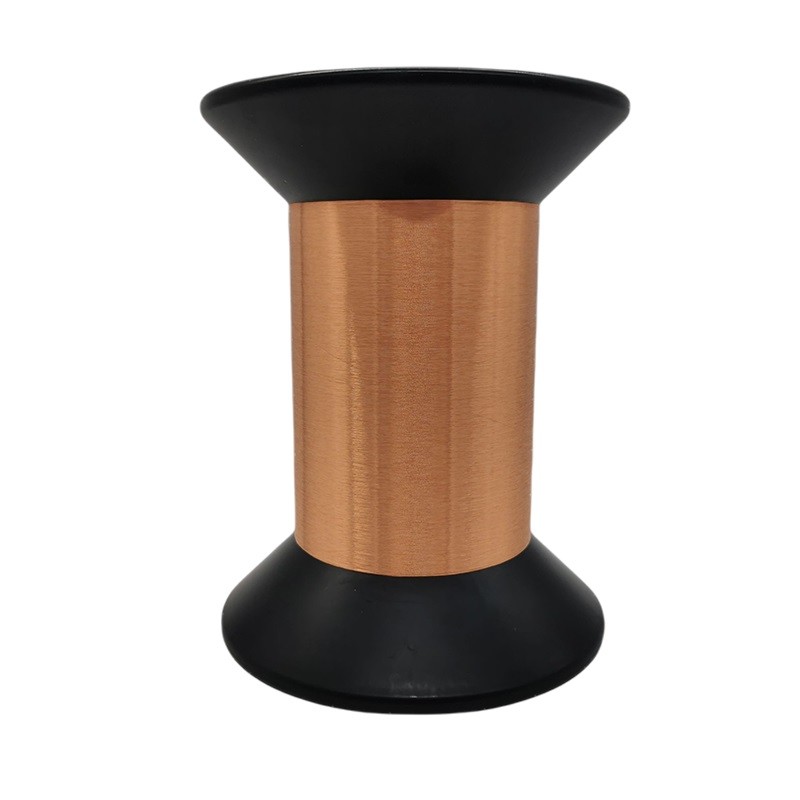

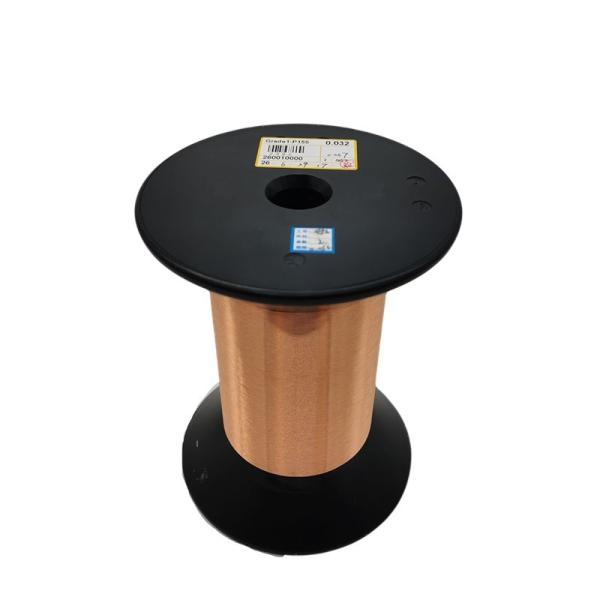

Grade 1 Class 155 0.032mm Enamel Coated Magnet Wire

Name: Grade 1 Class 155 0032mm Enamel Coated Magnet Wire
Brand: Ruiyuan
Price: 1 USD

Grade 1 Class 155 0.032mm Enamel Coated Magnet Wire Manufactures

Brand Name : Ruiyuan

Model Number : 0.032mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kgs

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 days

Packaging Details : Carton

Size : 0.032mm

Conductor material : Copper

Insulation : UEW/EIW/AIW

Thermal class : 155/180

Conductor type : Solid

Port : Tianjin, China

Contact Now

Grade 1 Class 155 0.032mm Magnet Wire Ultra Fine Enameled Copper Wire

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...
Grade 1 Class 155 0.032mm Enamel Coated Magnet Wire

FEATURES AND BENEFITS

HIgh tensile strength. 25% higher than copper wire
Good bending strength
high conductivity. >93%IACS
Excellent solderability,
Excellent audio property.

Characteristics	Technical requests		Test Results			Conclusion
Characteristics	Technical requests		Sample 1	Sample 2	Sample 3	Conclusion
Surface	Good		OK	OK	OK	OK
Bare Wire Diameter	0.032±	0.001	0.032	0.032	0.032	OK
Bare Wire Diameter	0.032±	0.001	0.032	0.032	0.032	OK
Coating Thickness	≥ 0.005 mm		0.009	0.008	0.008	OK
Overall Diameter	≤ 0.042 mm		0.041	0.04	0.04	OK
Conductor Resistance	≤ 22.843 Ω/m		22.032	22.076	22.716	OK
Elongation	≥ 10 %		14	15	14	OK
Breakdown Voltage	≥ 275 V		1456	1312	1332	OK
Pinhole Test	≤ 5 faults/5m		0	0	0	OK
Continuity	----		----	----	----	----
Test Items	Technical Requests		结论
Adhesive	Coating layer is good		OK
Cut-through	230℃ 2min no breakdown		OK
Heat Shock	200± 5℃/30min no crack		OK
Solder Ability	390± 5℃ 2Sec Smooth		OK
Solvent Resistance	No blister, no expansion, no shed		OK
