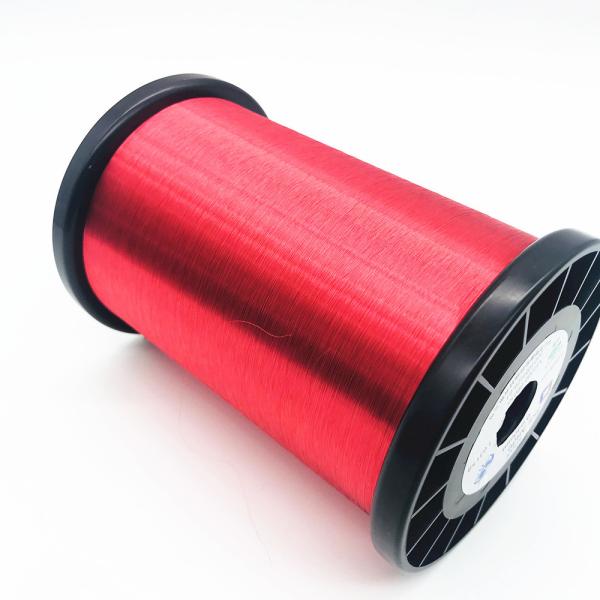

46 Awg Class 155 Enameled Copper Winding Wire Colored Self Adhesive

Name: 46 Awg Class 155 Enameled Copper Winding Wire Colored Self Adhesive
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : UEW

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : 46 AWG class 155 colored self adhesive enameled copper winding wire

Diameter : 0.04mm

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Polyurethane

Rated Temperature : 155/180

Key word : 46 AWG class 155 colored self adhesive enameled copper winding wire

Contact Now

46 AWG class 155 colored self adhesive enameled copper winding wire

Self-adhesive enameled copper wires almost all adopt a composite layer structure, that is, outside the general enameled wire (baseline), self-adhesive paint (self-adhesive layer) is applied.

Heat-resistant composite coating self-adhesive enameled wire and its use characteristics Self-adhesive enameled wire refers to the coil wound with it, which can be heated by baking or electric heating to make the outer coating bond layer interact, and the coil will harden and form by itself after cooling. An enameled wire.

Name	46 AWG class 155 colored self adhesive enameled copper winding wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.04mm
Key word	46 AWG class 155 colored self adhesive enameled copper winding wire

Characteristics	Technical requests		Test Results
			Sample 1	Sample 2
Surface	Good		OK	OK
Bare Wire Diameter	0.040±	0.001	0.040	0.040
		0.001
Insulation Film Thickness	Min. 0.002 mm		0.003	0.003
Bonding Film Thickness	Min. 0.002mm		0.003	0.003
Overall Diameter	≤ 0.054 mm		0.0534	0.0534
Continuity of Covering	Max. 3 pcs		Max. 0	Max. 0
Elongation	≥ 14 %		21	22
Breakdown Voltage	Min. 350 V		Min. 1502 V	Min. 1502 V
Flexibility	/		/	/
Adherence	No crack		Good	Good
Cut through	Continur 2 times pass		230 ℃/Good	230 ℃/Good
Solder Test	Max. 2		Max. 1.5	Max. 1.5
Bonding Strength	Min. 5		13	13
Electrical Resistance(20℃)	13.83-14.43 Ω/m		14.23	14.24

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
