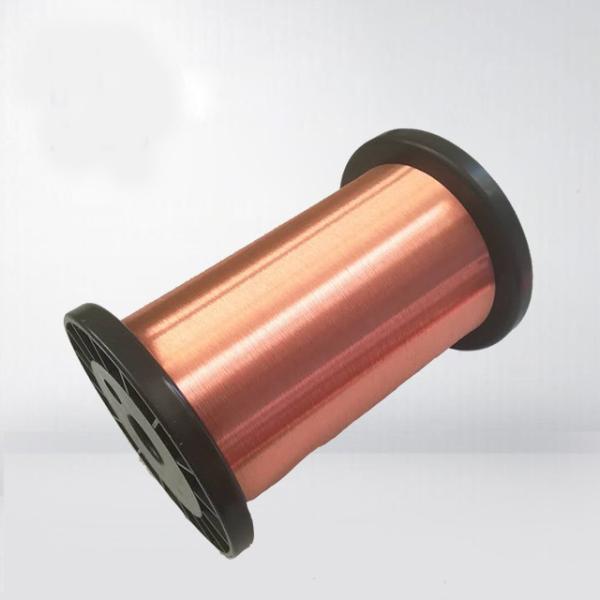

0.2mm - 0.6mm 2uew155 Solderable Wire Magnet Ultra Fine

Brand Name : Ruiyuan

Model Number : 0.5mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : 0.2mm - 0.6mm 2UEW155 Magnet Wire Ultra Fine Enameled Copper Wire

Thermal rating : 155/180

Insulation Material : Polyurethane

Diameter : 0.5mm

Conductor material : Copper

Key word : 0.2mm - 0.6mm 2UEW155 Magnet Wire Ultra Fine Enameled Copper Wire

Contact Now

0.2mm - 0.6mm 2UEW155 Magnet Wire Ultra Fine Enameled Copper Wire

Features and Benefits:

(a) Excellent dereeling and windability on high speed and/or automatic winding machines.

(b) Produces compact coils and windings

(c) Superior “Q” characteristics at high frequencies.

(d) Exceptional film flexbility and adhesion.

(e) Excellent resistant to a variety of solvents including most varnishes and hardener catalysts.

(f) Excellent crazing abrasion chemical resistance and provides good thermal stability.

Name

0.5mm Polyurethane Copper Magnet Wire Enamel Coated Insulated Copper Wire

Key word

Enameled copper wire

Insulationh

Enamel

Thermal rating

155/180

Diameter of the enameled copper wire

0.5mm

Type

0.5mm Polyurethane Copper Magnet Wire Enamel Coated Insulated Copper Wire

/
/
/
Overall diameter
0.022-0.024 mm
0.023
0.023
0.023
Electrical Resistance
≤60.810Ω/m
56.453
56.436
56.551
Elongation
≥ 8%
11
11
12
Breakdown voltage
≥130V
253
261
238
Pinbole test
≤ 8 hole/5m
1
0
1
Test items
Technical Requests
Results
Adhesive
No crack
OK
Cut-through
200℃ 2mins no crack
OK
Heat Shock
180±5℃/30min no crack
OK
Solder Ability
390± 5℃ 2Sec Smooth
OK

0.2mm - 0.6mm 2uew155 Solderable Wire Magnet Ultra Fine

0.2mm - 0.6mm 2uew155 Solderable Wire Magnet Ultra Fine

0.2mm - 0.6mm 2uew155 Solderable Wire Magnet Ultra Fine
