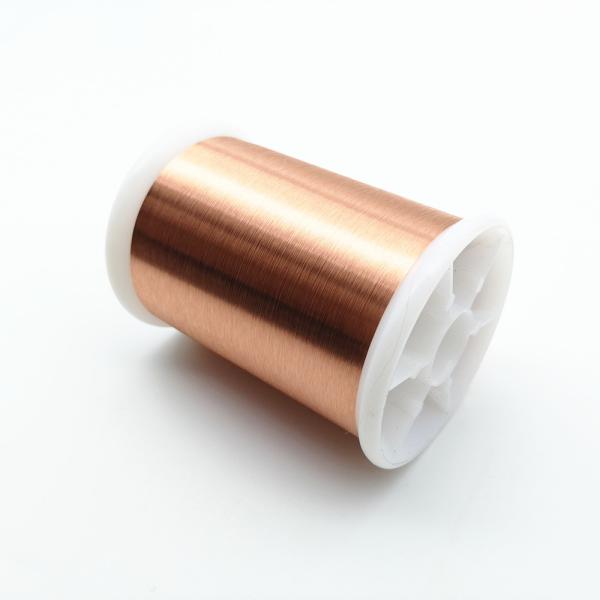

Polyurethane 0.012mm Class 155 Super Thin Copper Winding Wire For Quartz Watch Coils

Name: Polyurethane 0012mm Class 155 Super Thin Copper Winding Wire For Quartz Watch Coils
Brand: Ruiyuan
Price: 1 USD

Polyurethane 0.012mm Class 155 Super Thin Copper Winding Wire For Quartz Watch Coils Manufactures

Brand Name : Ruiyuan

Model Number : 0.012mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 30 g

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Enameled copper wire

Insulation : 2UEW

Diameter : 0.012mm

Thermal grade : 155

Conductor material : Copper

Port : Tianjin

Contact Now

Polyurethane 0.012mm Class 155 Super Thin Enameled Copper Winding Wire For Quartz Watch Coils

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage.

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.012±0.005	0.012	0.012
Coating Thickness	≥ 0.003 mm	0.03	0.04
Overall Diameter	Max.0.017mm	0.015	0.016
Conductor Resistance(Ω/m at 20℃)	≤ 165.99Ω/m	155.18	154.36
Elongation	≥ 5%	8	8
Breakdown Voltage	≥ 110V	314
Adhesive	Coating layer is good	OK
Cut-through	200℃ 2 times no breakdown	OK
Solder Ability	390± 5℃ 2Sec Smooth	OK

Polyurethane 0.012mm Class 155 Super Thin Copper Winding Wire For Quartz Watch Coils
