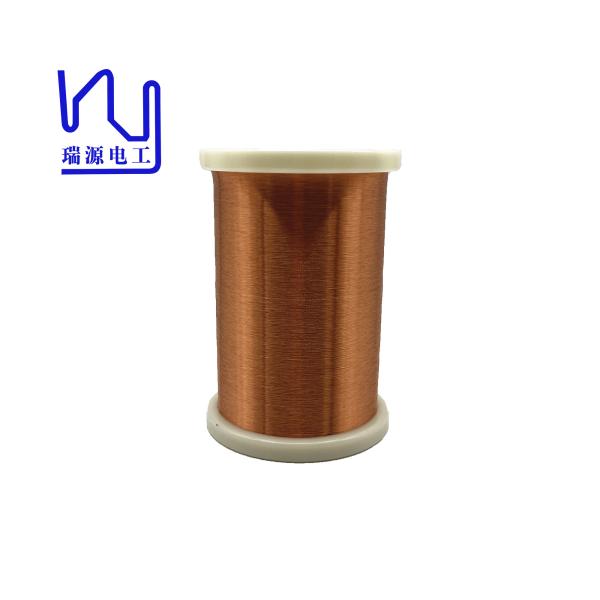

0.03mm Self Bonding Wire High Temperature 180c Self Adhesive

Brand Name : Ruiyuan

Model Number : 0.03mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : 0.03mm High Temperature 180C Self Adhesive Enameled Copper Winding Wire

Thermal rating : 155/180

Insulation Material : Polyurethane

Diameter : 0.03mm

Conductor material : Copper

Key word : 3UEW 155 0.03mm Super Thin Hot Air Self-adhesive Enameled Copper Wire For Speaker Coils

Type : 0.03mm High Temperature 180C Self Adhesive Enameled Copper Winding Wire

Contact Now

0.03mm High Temperature 180C Self Adhesive Enameled Copper Winding Wire

There is a big variety of enameled copper wire types available. The different insulation type are described in different standards, such as IEC 60317, NEMA MW 1000 or JIS C3202.
Under the respective standard the typical technical values are given for the different coats such as Polyurethane, Polyester, Polyesterimide etc.
Tianjin Ruiyuan Enameled Copper Wire can be applied to stepping motors for quartz watches, instrument coils, coils, Sensors, Transponders, etc.

Key word

0.03mm High Temperature 180C Self Adhesive Enameled Copper Winding Wire

Characteristics

Technical requests

Test Results

Sample 1

Sample 2

Sample 3

Surface

Good

OK

OK

OK

Bare Wire Diameter

0.030mm±

0.001

0.030mm

0.030mm

0.030mm

Overall Diamter

max.0.042mm

0.0419mm

0.0419mm

0.0419mm

Insulation Thickness

min. 0.002mm

0.003mm

0.003mm

0.003mm

Bonding Film Thickness

min. 0.002mm

0.003mm

0.003mm

0.003mm

Continuity of covering(12V/5m)

max. 3

max. 0

max. 0

max. 0

Adherence

No crack

OK

Cut Through

continue 3 times pass

170℃/Good

Solder Test 375℃±5℃

max. 2s

max. 1.5s

Bonding Strength

min. 1.5g

9 g

Conductor Resistance(20℃)

≤ 23.98- 25.06Ω/m

24.76Ω/m

Breakdown voltage

≥ 375 V

MIN. 1149V

Elongation

min. 12%

19%

0.03mm Self Bonding Wire High Temperature 180c Self Adhesive

0.03mm Self Bonding Wire High Temperature 180c Self Adhesive

0.03mm Self Bonding Wire High Temperature 180c Self Adhesive
