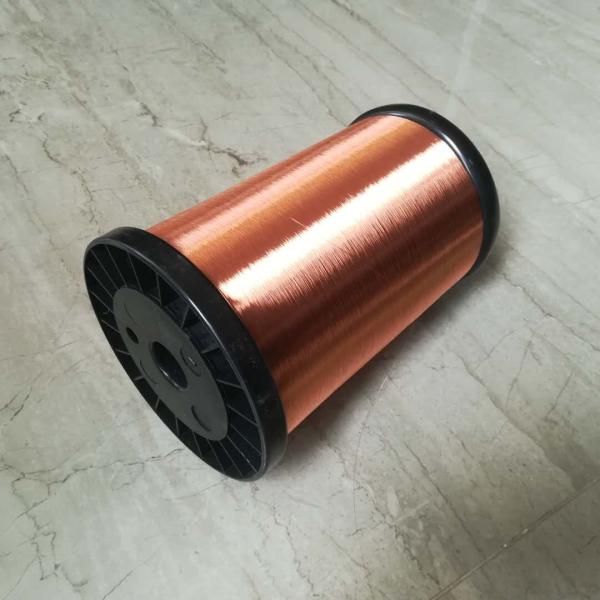

Alcohol Self Bonding Magnet Wire 0.20mm Insulated Copper

Name: Alcohol Self Bonding Magnet Wire 020mm Insulated Copper
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.2mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : Alcohol Self Bonding 0.20mm Insulated Copper Wire

Thermal rating : 155

Insulation Material : Polyurethane

Diameter : 0.2mm

Conductor material : Copper

Key word : Alcohol Self Bonding 0.20mm Insulated Copper Wire

Type : Alcohol Self Bonding 0.20mm Insulated Copper Wire

Contact Now

Alcohol Self Bonding 0.20mm Insulated Copper Wire

This hot air self-adhesive enamelled copper wire has a wide range of characteristics and application scenarios. It can be used not only in high-end audio equipment, voice coils and other electronic equipment, but also in general circuit connection and transmission.

Specifically, this self-adhesive enameled wire has the following features:Ultra-high insulation performance: through professional high-grade polyurethane enamelling treatment, it has ultra-high insulation performance.

Excellent high temperature resistance: it can maintain normal work in high temperature environment, and the enamelled coating can effectively prevent oxidation and corrosion.

 	 			Name
 			Alcohol Self Bonding 0.20mm Insulated Copper Wire

 			Key word
 			Alcohol Self Bonding 0.20mm Insulated Copper Wire

 			Insulationh
 			Enamel

 			Thermal rating
 			155

 			Diameter of the enameled copper wire
 			0.2mm

  	 			Alcohol Self Bonding 0.20mm Insulated Copper Wire

 			Conductor Diameter
 			0.20mm/ 32 AWG

 			O.D
 			MAX. 0.235mm

 			Breakdown Voltage
 			min. 4000V

 			Bonding Strength
 			min. 36g

 			Elongation
 			min. 23%
